Carpigiani Turbomix: fast, precise emulsifying for perfectly smooth gelato mixes
The Turbomix blends, emulsifies and disperses dry, fibrous and fatty ingredients into liquids, so every gelato mix comes out perfectly uniform. It is just as useful in pastry work.
Processing is extremely fast: flavouring pastes are emulsified into 5 L of base mix in about 30 seconds, with anything from 3 L to 15 L per cycle.
Key specifications: Carpigiani Turbomix
| Capacity | |
| Quantity per cycle | 3–15 L |
| Performance | |
| Motor speed | 3,000–12,000 rpm |
| Rotor speed | approx. 22 m/sec |
| Electrical | |
| Power supply | 230 V / 50–60 Hz / 1 Ph |
| Rated power input | 0.75 kW |
| Size | |
| Dimensions (W × D × H) | 44 × 50 × 76 cm (min. height) to 114 cm (max. height) |
| Net weight | 65 kg |
The minimum quantity per cycle depends on the recipe.
Features of the Carpigiani Turbomix
Quality
- Blends, emulsifies and disperses dry, fibrous and fatty ingredients into liquids for uniform mixes
- An essential tool for preparing every mix in modern gelato production
Performance

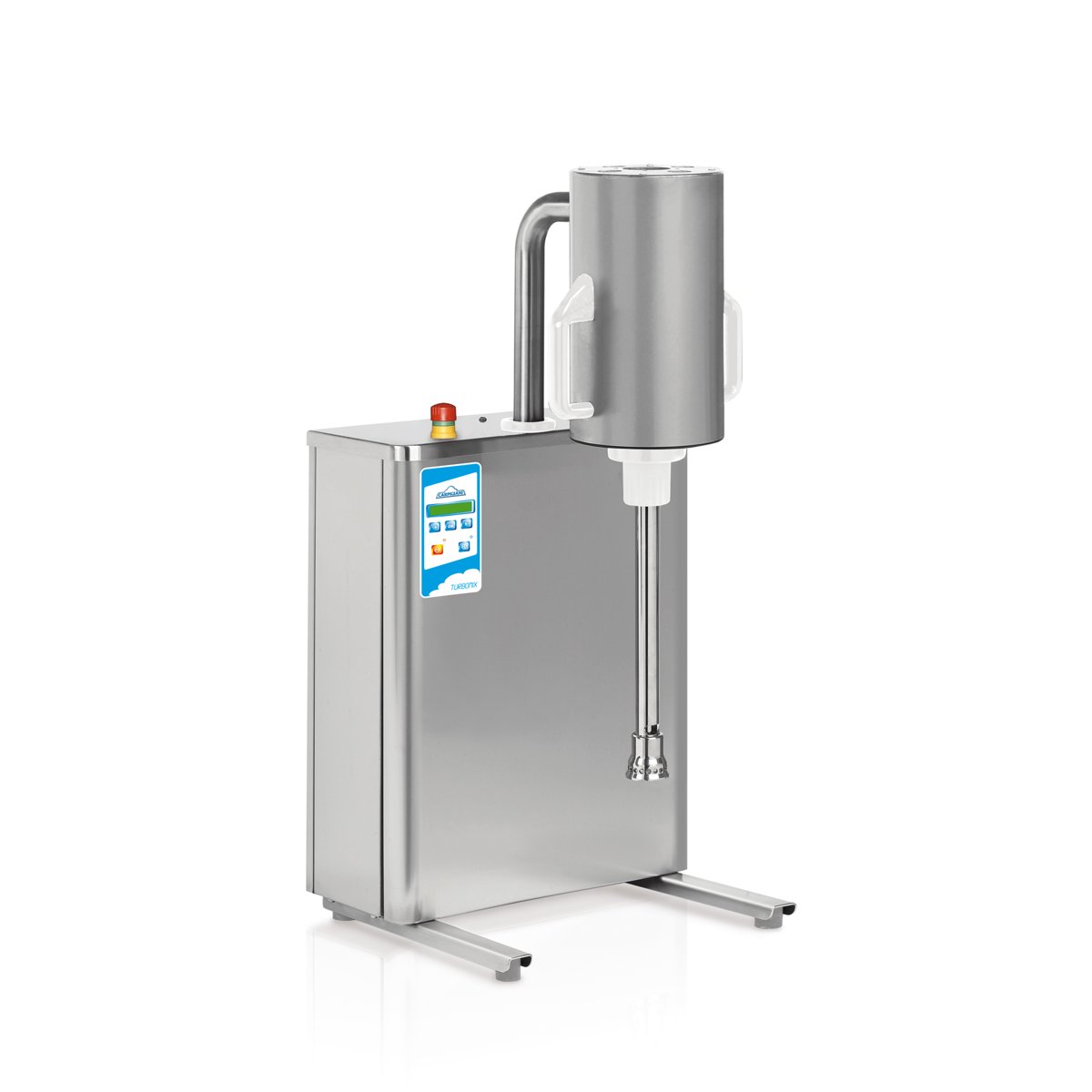

- Stable, vertical tabletop frame with a motor-carrying arm
- Powerful variable-speed motor with vertical and oscillating movement
Blades
- Paste blade: fully disperses sugary or fatty flavouring pastes into base mixes
- Fruit blade: chops and blends fresh or frozen fruit and disperses fruit purées
- Cutter (optional): rotary blender for large pieces of fruit, even pears and apples
Safety
- Runs only while both of the operator’s hands are on the control handles
- Speed is adjusted by sliding your thumbs along the handles
- After 10 seconds of continuous contact, a sound and light signal shows automatic operation is available
Hygiene

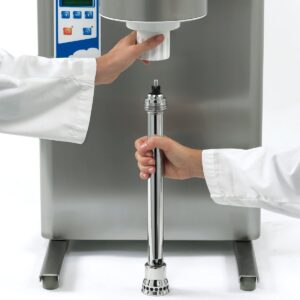

- Blades release by unscrewing the ring nut under the motor, for quick changes
- Plastic motor-to-rotor coupling is easy to replace and protects the machine from misuse
- Blades fully disassemble for complete cleaning at the end of the day
Carpigiani technology in the Turbomix
Carpigiani engineers its own control systems and components, giving you technology other manufacturers can’t offer. Here is every technology Carpigiani’s official catalogue lists for the Turbomix:
Control, consistency and performance (2)
- Variable-speed high-power motor: A powerful variable-speed motor (3,000–12,000 rpm) whisks, blends, emulsifies and breaks down dry or fibrous ingredients for fully homogeneous mixes.

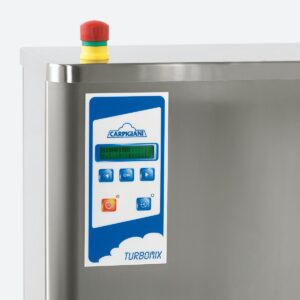

- Control panel with timer and emergency stop: The panel includes on/off, a blending timer, an LED speed bar and an emergency button that stops the machine instantly.
Programs and recipes (1)

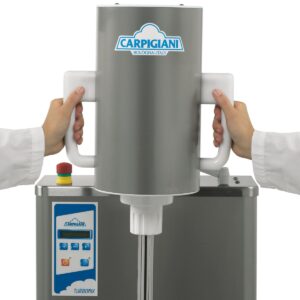

- Two-handed controls with automatic mode: The machine runs only while both hands hold the handles; after 10 seconds a signal allows switching to automatic mode so it finishes the program unattended.
Hygiene, cleaning and food safety (1)
- Carpi Care kit: A dealer-supplied kit for keeping the machine hygienically maintained.
Build, design and convenience (7)
- Paste Emulsifier: A high-speed rotor designed to break oily, dense or sugary flavour pastes into the base mix quickly, for fuller aroma and creaminess.
- Fruit Emulsifier: Chops and mixes fresh or frozen fruit into purée and blends powders such as sugars and stabilisers for water-based mixes.
- Vertical excursion: A weighted arm moves the motor up and down by nearly 40 cm for different batch sizes and locks at the chosen height.
- Horizontal oscillation: The motor can be guided in circles up to about 25 cm across so the turbine captures solids that drift to the edges.
- Quick-change emulsifiers with protective coupling: Emulsifiers release by unscrewing a ring nut; a replaceable plastic motor-rotor coupling protects the machine from misuse.
- Fast handling times: Around 30 seconds to blend pastes into 5 L of base, 60 seconds to dissolve mix in liquid, and 120 seconds for a complete mix from single ingredients.
- Multi-purpose applications: Beyond gelato mixes, it handles pastry products and thick emulsions, as well as materials for chemical, pharmaceutical and cosmetics uses.
Optional extras (1)
- Cutter: A rotary blade that chops large fruit such as pears and apples, working with the emulsifiers to create a fine purée. (optional)
Optional features can be added to your order. Ask us about the configuration you need.
Everything to make and sell gelato with your Carpigiani Turbomix
Pair your batch freezer with Rubicone bases, flavours, ripples and toppings, a Carpigiani pasteuriser, a Techfrost blast freezer and an ISA, BRX or IFI showcase. We also run training.
Why buy your Carpigiani Turbomix from Majors Group?
- Supplying Australian gelaterias, cafés, restaurants and dessert businesses since 1993
- Free demonstration at each of our showrooms: see the machine in action before you buy
- Machine set-up, recipe development and menu development support from our gelato specialists
- Expert advice on choosing the right machine for your menu and volumes
- Servicing and genuine Carpigiani spare parts support (service line 1300 005 777)
- Flexible finance options through FlexiCommercial
Call 1800 625 677 or request a quote on the Carpigiani Turbomix and our team will help you get started.
One-on-one Carpigiani Demo & Training
See the machine in action with a free one-on-one demo at our showroom, then get the most from it with one-on-one training from our specialists. Every Carpigiani machine we supply is covered. Contact us to get started.
- Free one-on-one machine demo at our showroom
- Machine training, one-on-one
- Program training for your model
- Recipe training for gelato, ice cream, sorbet, frozen yoghurt, pastry and more
Contact us to get started or call 1800 625 677
Trade in your machine and upgrade to the Carpigiani Turbomix
Is your current machine holding your business back? Trade it in and put its value towards a new Carpigiani Turbomix. Upgrading is a chance to increase output, refresh your menu with new products and programs, and run a more reliable machine for years to come.
- Trade-in valuation of your existing gelato, soft serve or frozen dessert machine
- Put the value towards the Carpigiani Turbomix
- Flexible finance to spread the cost of the upgrade
- Installation, one-on-one training and recipe support on your new machine
Machine consumables and service
Consumable parts wear with every day of production. Replacing them on schedule keeps your Carpigiani Turbomix running efficiently, protects product quality and helps prevent costly breakdowns. Contact our service team today to keep and improve your machine’s efficiency.
- Genuine Carpigiani consumable parts, such as scrapers, gaskets and O-rings, plus Carpi Care and Carpi Clean kits
- Preventive maintenance to keep your machine at its best
- Repairs and servicing by our trained technicians
- Advice on cleaning and daily care for your model
Contact service today or call our service line 1300 005 777
Technical Specifications
| Power Supply | |
|---|---|
| Quantity per Cycle | 3–15 L |
| Motor RPM | 3.000 – 12.000 |
| Rotor speed | approx 22 m/sec |
| Rated Power Input | 0.75 kW |
| Dimensions (W x D x H) | Min: 44 x 50 x 76 cm; Max: 44 x 50 x 114 cm |
| Net Weight | 65 kg |
