Master Filler
It allows bags or containers of pasteurised mix to be filled with maximum safety and hygiene

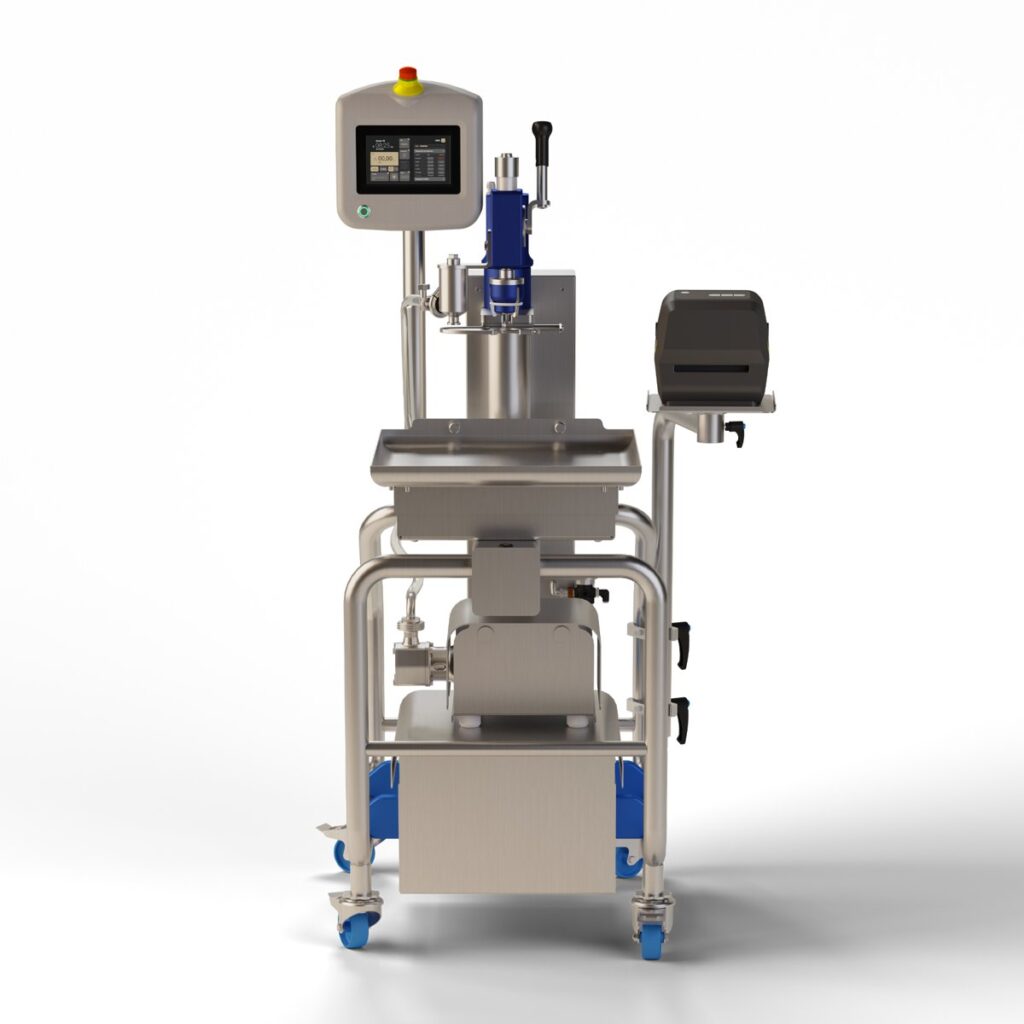

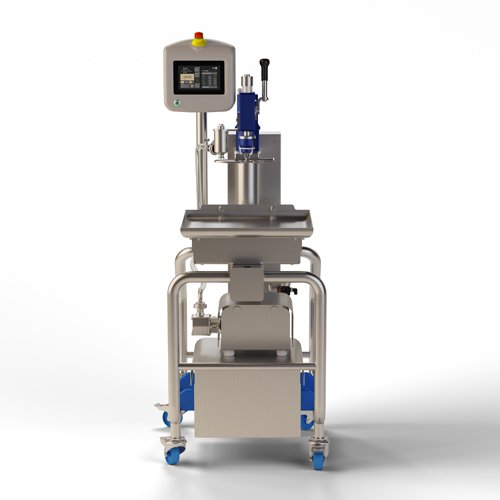

The Carpigiani Master Filler allows you to fill containers of various shapes and sizes or bags of pasteurised mix with maximum safety and hygiene. You can choose between two versions, one for filling containers and one for filling bags with caps.
- ✓Centralised lab system: pasteurise once, supply many stores
- ✓Integrated scale: filling stops automatically at the set weight
- ✓Four-step semi-automatic container filling
- ✓Integrated cap system: opens and closes bag caps automatically
Catalogue
It allows bags or containers of pasteurised mix to be filled with maximum safety and hygiene
The Carpigiani Master Filler allows you to fill containers of various shapes and sizes or bags of pasteurised mix with maximum safety and hygiene. You can choose between two versions, one for filling containers and one for filling bags with caps.
- ✓Centralised lab system: pasteurise once, supply many stores
- ✓Integrated scale: filling stops automatically at the set weight
- ✓Four-step semi-automatic container filling
- ✓Integrated cap system: opens and closes bag caps automatically
Read more
Together with the pasteuriser, Carpigiani builds a system that promotes the centralization of mixes, optimising space, resources and production quality.
The point of sale will only be required to keep the gelato fresh each day.
It is possible to purchase the handheld device with the dedicated app for managing the mix stock, both at the centralized laboratory and the various points of sale.
Technology & features
What the Master Filler does for you
19 features in 3 groups. The tabs change by themselves until you choose one.
7-inch touch screen
The touchscreen simplifies operator interaction and gives access to the available customisations.
Self-priming stainless steel pump
Food-grade stainless steel pump transfers mix and fully empties the pasteuriser without affecting flavour; speed is adjustable on the display to suit density.
Centralised mix production system
Paired with a Carpigiani pasteuriser, it lets a central lab pasteurise, fill and store mix for refrigerated or frozen delivery; stores only need to batch freeze.
Integrated scale with automatic stop
The quantity for each container or bag is set on screen and filling stops when it is reached; scale sensitivity is 1 g.
Semi-automatic container filling
Set mix type, quantity and expiry date, place the container on the scale, press dispense and print the label.
Integrated cap opening and closing system
Buttons on the lever open and close bag caps as part of a six-step semi-automatic filling sequence.
Labeling Maker
Prints adhesive labels with customisable text to organise the central laboratory; a movable arm allows flexible work layouts.
Temperature probe
Directly measures and records the temperature of the product during dispensing.
Integrated cabinet
Compressor and pump are housed in two separate lower cabinets, making the unit easier to move around the lab.
Height-adjustable casters and bubble level
Height-adjustable casters and a bubble level let the machine adapt to sloping floors so the integrated scale works correctly.
Container support
Designed to adapt to many container types while keeping them stable for correct filling.
Bag Holder
The holder’s inclination helps bags fill correctly and prevents air pockets forming.
Removable dispenser and drip catcher
An adaptable bag holder, drip catcher and removable dispenser support high hygiene standards.
Large drip tray
The integrated scale includes a large drip tray that protects the machine from spills.
Detergent-resistant stainless steel casters
Wheels and height-adjustable stainless steel casters stand up to cleaning with strong detergents.
Technical column
Designed to optimise and safely manage the electrical connection of accessories.
Emergency stop button
A dedicated emergency stop button halts the machine.
Ergonomic design
Ergonomic design with rounded, joined corners to reduce the risk of accidents.
Optional
Handheld tablet with dedicated app
Tracks liquid mix stock at the central lab and points of sale, and records product temperature on delivery.
Optional extras can be added to your order or, for most items, fitted later. All Carpigiani options and accessories →
See the Master Filler in action
Complete your set-up
Gelato bases
Milk, fruit and special bases for consistent artisan gelato.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Ripple sauces
Rubicone variegati to ripple through gelato and fill pastries.
Toppings
Sauces, crocks and crumbles to finish every serve.
Batch freezers
Carpigiani Labo and Ready machines to make the gelato.
Blast freezers
Techfrost blast freezers to harden and store gelato and pastry.
Display cabinets
ISA, BRX and IFI gelato showcases to sell your gelato.
Cups, cones & spoons
Everything you need to serve and take away.
Training
Learn recipes, balancing and production at Carpigiani Gelato University.
Demo and training
See the Master Filler run at a free showroom demo, then get one-on-one training on your machine, its programs and recipes.
Trade in and upgrade
Put the value of your current machine towards the Master Filler, with finance to spread the cost.
Service and consumables
Genuine Carpigiani parts, Carpi Care and Carpi Clean kits, preventive maintenance and repairs by our technicians.
Key specifications
The Carpigiani Master Filler is a pasteuriser. It runs on 240 V single phase with a 5 A fuse, measures 63 × 88 × 152.2 cm and weighs 102 kg.
- Power supply240 V / 50 Hz / 1 Ph
- Fuse5 A
- Dimensions63 × 88 × 152.2 cm
- Net weight102 kg
Figures are the manufacturer’s published specifications.
Technical Specifications
| Weight | 102 kg |
|---|---|
| Dimensions | 63 × 88 × 152.2 cm |
| UOM | Unit |
| Power Supply | |
| Fuse Size | 5 A |
