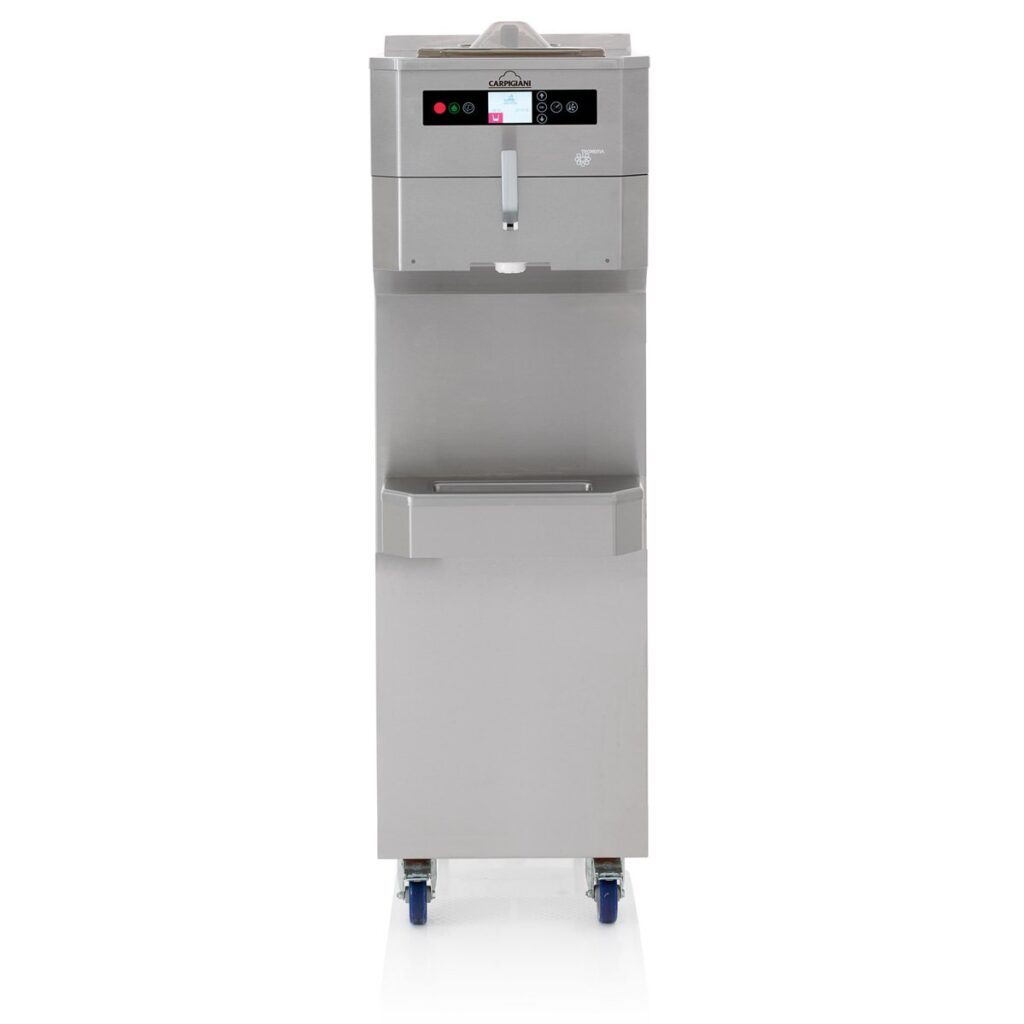

XVL 1 Steel
High-performance single flavour floor-standing express gelato and soft serve machine to produce more than 450 servings of 75 g in one hour
The Carpigiani single-flavour soft serve machine for gelato, sorbets and frozen yoghurt.
- ✓Hard-O-Tronic®: adjust soft serve consistency quickly
- ✓Submerged pump: 40–80% overrun, adjustable with full tank
- ✓Gravity feed: up to 40% overrun, adjustable anytime
- ✓2E-RSI beater for soft, creamy soft serve
Explore all 30 technologies ↓Free showroom demo ↓
Part of the Carpigiani XVL range: compare all 4 models.
Catalogue
High-performance single flavour floor-standing express gelato and soft serve machine to produce more than 450 servings of 75 g in one hour
The Carpigiani single-flavour soft serve machine for gelato, sorbets and frozen yoghurt.
- ✓Hard-O-Tronic®: adjust soft serve consistency quickly
- ✓Submerged pump: 40–80% overrun, adjustable with full tank
- ✓Gravity feed: up to 40% overrun, adjustable anytime
- ✓2E-RSI beater for soft, creamy soft serve
Explore all 30 technologies ↓Free showroom demo ↓
Part of the Carpigiani XVL range: compare all 4 models.
The system can either be pump-fed or gravity-fed, with overrun adjustment even with a full hopper. Both the gravity and pump versions have a 13-litre hopper capacity.
Read more
It is equipped with the Star Door, specifically for use with the nozzles of the single-portion kit and the new nozzles, with which to customise the style and shape of soft gelato. The machine is air-cooled (water cooling optionally available).
With the automatic self-pasteurisation system, you can choose when to wash the machine and schedule the next washing at a maximum interval of 42 days.
Technology & features
What the XVL 1 Steel does for you
31 features in 5 groups. The tabs change by themselves until you choose one.
Hard-O-Tronic® (H-O-T)
Electronic control lets operators change the consistency of soft serve, sorbet or frozen yoghurt simply and quickly.
Submerged pump feed (Version P)
A pressurised steel pump with thermoplastic polymer gears and a holed regulator gives 40% to 80% overrun for dry, compact soft serve.
2E-RSI High Efficiency Beater
Stainless steel beater with plastic scrapers and a removable shaft, suited to soft and creamy product.
High Efficiency POM Beater
A one-piece beater in food-grade plastic, fitted as standard on gravity versions.
Adjustable dispensing speed
The dispensing flow can be adjusted to suit different volumes and serving speeds.
Independent pump transmission
On pump versions, a separate transmission prolongs pump and gear life while keeping performance flexible.
High-performance gearmotors and condensers
New electric gearmotors and condensers deliver higher performance and savings.
Air or water cooling
Water cooling uses a rear inlet/outlet circuit; air cooling with a rear chimney saves installation space and allows side-by-side placement.
Removable pump shaft
The pump shaft comes out easily, simplifying cleaning and supporting hygiene and reliability.
Black-out and water outage protection
After an outage the machine checks time and temperature: if the mix is safe it resumes; otherwise it starts pasteurisation (self-pasteurising models) or requires washing, with an on-screen message.
Multifunctional Cleaning Button
Pump and beater can be switched on individually or together for cleaning; a hot cleaning mode runs the beater while heating the cylinder to dissolve grease quickly.
Gravity feed (Version G)
Feed tube holes of different sizes naturally aerate the mix; an overrun adjuster changes it even with a full tank.
1.75 L direct expansion cylinder
Optimised refrigeration shortens freezing times and saves energy; a relocated feed hole makes pre-loading simple and safe.
Star Door
The Star Door allows the new nozzles and the single-portion kit to be used.
Self Closing levers
Levers close automatically to stop product flow and avoid waste; they are easy to assemble and remove.
Pinless aluminium levers
Levers can be taken off and refitted quickly without tools when the machine is unattended, suiting rotating staff.
Tank agitator
An agitator in the tank stops the mix separating in storage and improves heat transfer during pasteurisation.
Minimum mixture residue
A recess at the rear of the tank means very little mix is wasted during cleaning.
Button lock
The control buttons can be locked to stop unintended inputs.
Scheduled start
Production, pasteurisation and storage programs can be timed to run automatically, for example overnight, so the machine is ready the next day.
Ergonomic transparent lid
An ergonomic see-through lid makes checking the tank easy.
Ergonomic rounded corners
Corners in the operator’s working area are more rounded to lower the chance of knocks and injuries during daily use.
QR code information access
A QR code on the machine front links to the latest equipment information, including the instruction manual and Carpi Care and Carpi Clean kit details.
Optional
Blender
A built-in blender uses disposable spoons to mix toppings or syrups into soft serve cups conveniently and hygienically.
Optional
Nozzles
Choose new, distinctive nozzles to style the soft serve.
Optional
Monoportion kit
A nozzle kit for filling small cups, cannoli and other single-portion frozen desserts.
Optional
Dry Filling system
Automatically adds water so powdered mixes are prepared in the tank, saving time and space and reducing dosing errors.
Optional
Teorema
Carpigiani’s remote control and diagnosis system lets owners and technicians monitor the machine over the internet, supporting faster service and continuity of production.
Optional
Wash kit
An optional water tap mounted above the tank makes cleaning easier.
Optional
Carpi Care kit & Carpi Clean kit
Dedicated kits of replacement gaskets and cleaning brushes, ordered through your dealer, to keep the machine in hygienically perfect condition.
Optional extras can be added to your order or, for most items, fitted later. All Carpigiani options and accessories →
Performance and Quality
- Choice of mix feeding system (Submerged Pump or Gravity)
Complete your set-up
Frozen yoghurt premix
Rubicone froyo mixes: classic, low fat, vegan and high-protein.
Soft serve mix
Creamy and fruit soft serve bases: just add water or milk.
Açaí mix
Serve smooth açaí soft serve straight from the machine.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Toppings
Sauces, crocks and crumbles to finish every serve.
Cones
Waffle and flat-top cones in every size.
Cups
Gelato, froyo and drink cups for every serve size.
Spoons
Paper spoons for gelato, frozen yoghurt and açaí.
Training
Hands-on soft serve and gelato courses with Carpigiani Gelato University.
Demo and training
See the XVL 1 Steel run at a free showroom demo, then get one-on-one training on your machine, its programs and recipes.
Trade in and upgrade
Put the value of your current machine towards the XVL 1 Steel, with finance to spread the cost.
Service and consumables
Genuine Carpigiani parts, Carpi Care and Carpi Clean kits, preventive maintenance and repairs by our technicians.
Key specifications
The Carpigiani XVL 1 Steel is a single-flavour floor-standing soft serve machine with a 13 L hopper and a 1.75 L freezing cylinder. It runs on 400 V three phase at 2.5 kW with a 10 A fuse.
- Flavours1 Flavour
- Hopper13 L
- Cylinder1.75 L
- FeedGravity Feed | Pump Feed
- CoolingAir Cooling | Water Cooling
- Power supply400 V / 50 Hz / 3 Ph
- Rated power2.5 kW
- Fuse10 A
Figures are the manufacturer’s published specifications; output depends on the mix and the room temperature.
Technical Specifications
| Power Supply | |
|---|---|
| Cooling System | |
| Feeding System | |
| No of Flavours | |
| Tank Capacity | 13 L |
| Cylinder Capacity | 1.75 L |
| Rated Power Input | 2.5 kW |
| Fuse Size | 10 A |
