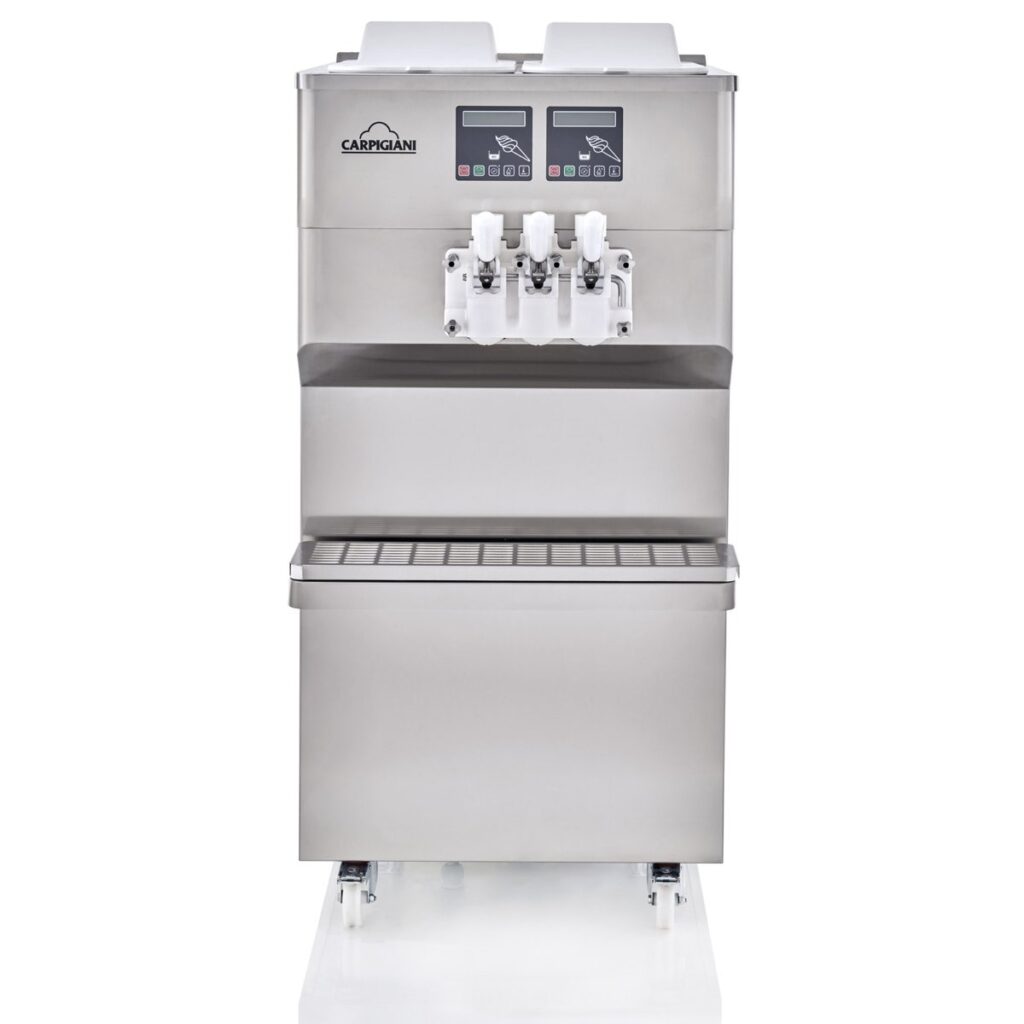

UF 920 SP
Twin-twist floor-standing express gelato and soft serve machine with high production capacity. It produces up to 1000 servings in one hour
The twin-twist Carpigiani machine is ideal for very high performance.
- ✓Hard-O-Tronic®: change soft serve consistency quickly and simply
- ✓Two independent sides: run different products or just one
- ✓Self-pasteurisation: full clean needed only every 42 days
- ✓Multi-functional menu switches between soft serve, shakes, jars, crystal
Explore all 30 technologies ↓Free showroom demo ↓
Part of the Carpigiani UF range: compare both models.
Catalogue
Twin-twist floor-standing express gelato and soft serve machine with high production capacity. It produces up to 1000 servings in one hour
The twin-twist Carpigiani machine is ideal for very high performance.
- ✓Hard-O-Tronic®: change soft serve consistency quickly and simply
- ✓Two independent sides: run different products or just one
- ✓Self-pasteurisation: full clean needed only every 42 days
- ✓Multi-functional menu switches between soft serve, shakes, jars, crystal
Explore all 30 technologies ↓Free showroom demo ↓
Part of the Carpigiani UF range: compare both models.
The machine can be equipped with the Star Door that allows fitting the 18 different nozzles that can be purchased individually or in the optional kit.
Technology & features
What the UF 920 SP does for you
32 features in 6 groups. The tabs change by themselves until you choose one.
Hard-O-Tronic® (H-O-T)
Electronic control sets consistency for soft serve, sorbets, frozen yoghurt, jar and tub fills or shakes, and changes it quickly.
Independent refrigeration systems and user interfaces
Each cylinder has its own refrigeration and controls, so desserts of different consistencies can be made at once, or one side used alone.
Pump feed – P Version
A pressurised steel pump with advanced thermoplastic polymer gears suits dense ice cream and thick shakes; regulator holes set overrun between 40% and 80%.
2NSI / 3NSI High Efficiency Beater
Pump versions use a stainless steel beater (2NSI on UF 720, 3NSI on UF 920) with self-adjusting plastic scrapers and removable shaft, for creamy ice cream or icier shakes.
Detachable POM High Efficiency Beater
Gravity versions use a detachable high-efficiency beater made of POM thermoplastic for soft and creamy soft serve.
Adjustable dispensing speed
Delivery flow can be adjusted to meet different volume and speed requirements.
Independent pump transmission
A separate pump drive lengthens pump and gear life while keeping performance flexible.
Removable pump shaft
The pump shaft comes out to simplify cleaning and support hygiene and reliability.
High-performance electric motors and condensers
High-performance motors and condensers are presented as a running-cost saving.
Choice of air or water cooling
Water-cooled units use a rear-accessible circuit; air-cooled units use a rear chimney so machines can be placed side by side.
Multi-functional menu
Quickly and intuitively select the product type: soft serve, milkshakes, jars, or crystal for moulds.
Automatic self-pasteurisation (42-day cleaning interval)
Choose when to wash, up to a 42-day maximum; if the full clean is not done in time the machine locks automatically for hygiene safety.
Black-out and water outage protection
After a power or water failure the machine resumes if time-temperature data show the mix is safe; otherwise it runs a pasteurisation cycle and alerts the operator.
Multifunctional cleaning button with hot cleaning
Run pump and beater separately or together; hot cleaning heats the cylinder while the beater turns to quickly dissolve production residues.
Carpi Care kit and Carpi Clean kit
Dedicated gasket and brush kits, available from your dealer, to keep the machine hygienic and clean.
Gravity feed – G Version
Calibrated holes on the feed needle meter mix with air; a slider on the needle adjusts overrun even when the hopper is full.
Direct expansion cylinders
A 2.5 L cylinder on UF 720 and 3.8 L on UF 920 optimise refrigeration; a repositioned feed hole makes pre-loading simple and safe.
Tank agitator
Keeps the mix from separating in storage and improves heat exchange during pasteurisation.
Scheduled start
Production, pasteurisation and storage programs can run automatically at a set time, such as overnight, so the machine is ready next day.
Button lock
Display buttons can be locked for added security against accidental errors.
Rubber tank lid
The lid can be partly opened to fill the tank without removing it.
Ergonomic design
Corners are more rounded where the operator works to reduce the risk of injury.
QR code equipment information
Scanning the front QR code opens the latest instruction manual and Carpi Care and Carpi Clean kit information.
Optional
Two Independent Doors
Each door runs its own program, so one side can pasteurise or wash while the other keeps producing. Also available in Star version.
Optional
Twin Twist door
Left and right levers dispense single flavours and the centre lever dispenses both combined. Also available in Star version.
Optional
Star Door
The Star version of the door accepts Carpigiani’s new nozzles and the monoportion kit.
Optional
Nozzles
A choice of new, distinctive nozzles to customise the look of your soft serve.
Optional
Monoportion kit
A nozzle kit for filling cups, containers, jars and trays, or producing single-serve portions.
Optional
Self Closing levers
Levers close automatically to stop product flow, cutting waste; they are easy to assemble and remove and suit rotating staff.
Optional
Teorema
Optional on UF 920, giving online monitoring and diagnosis; technicians can see configuration parameters as if at the machine.
Optional extras can be added to your order or, for most items, fitted later. All Carpigiani options and accessories →
Performance and Quality
- Choice of mix feeding system (Pump or gravity)
Safety
- More operational safety and more control during production
See the UF 920 SP in action
Complete your set-up
Frozen yoghurt premix
Rubicone froyo mixes: classic, low fat, vegan and high-protein.
Soft serve mix
Creamy and fruit soft serve bases: just add water or milk.
Açaí mix
Serve smooth açaí soft serve straight from the machine.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Toppings
Sauces, crocks and crumbles to finish every serve.
Cones
Waffle and flat-top cones in every size.
Cups
Gelato, froyo and drink cups for every serve size.
Spoons
Paper spoons for gelato, frozen yoghurt and açaí.
Training
Hands-on soft serve and gelato courses with Carpigiani Gelato University.
Demo and training
See the UF 920 SP run at a free showroom demo, then get one-on-one training on your machine, its programs and recipes.
Trade in and upgrade
Put the value of your current machine towards the UF 920 SP, with finance to spread the cost.
Service and consumables
Genuine Carpigiani parts, Carpi Care and Carpi Clean kits, preventive maintenance and repairs by our technicians.
Key specifications
The Carpigiani UF 920 SP is a twin-twist floor-standing soft serve machine with two 20 L hoppers and a 3.8 L freezing cylinder. It runs on 400 V three phase with a 20 A fuse.
- Output per hour533+533 (pump version); 466+466 (gravity version) (75 g servings)
- Flavours2 Flavours +
- Hopper20+20 L; Gravity-fed version: Individual hopper capacity: 19 quarts (18 L); Total hopper capacity: 38 quarts (36 L). Pump-fed version: Individual hopper capacity: 13 quarts (12 L); Total hopper capacity: 26 quarts (24 L)
- Cylinder3.8 L
- FeedGravity Feed | Pump Feed
- CoolingAir Cooling | Water Cooling
- Power supply400 V / 50 Hz / 3 Ph
- Rated power8.7 kW (pump version); 8.5 kW (gravity version)
Figures are the manufacturer’s published specifications; output depends on the mix and the room temperature.
Technical specifications
| UOM | Unit |
|---|---|
| Power Supply | |
| Cooling System | |
| Feeding System | |
| No of Flavours | |
| Flavours | 2+1 |
| Hourly Production | 533+533 (pump version); 466+466 (gravity version) (75 g servings) |
| Tank Capacity | 20+20 L; Gravity-fed version: Individual hopper capacity: 19 quarts (18 L); Total hopper capacity: 38 quarts (36 L). Pump-fed version: Individual hopper capacity: 13 quarts (12 L); Total hopper capacity: 26 quarts (24 L) |
| Cylinder Capacity | 3.8 L |
| Rated Power Input | 8.7 kW (pump version); 8.5 kW (gravity version) |
| Fuse Size | 20 A |
| Net Weight | 486 kg (pump version); 456 (gravity version) |
