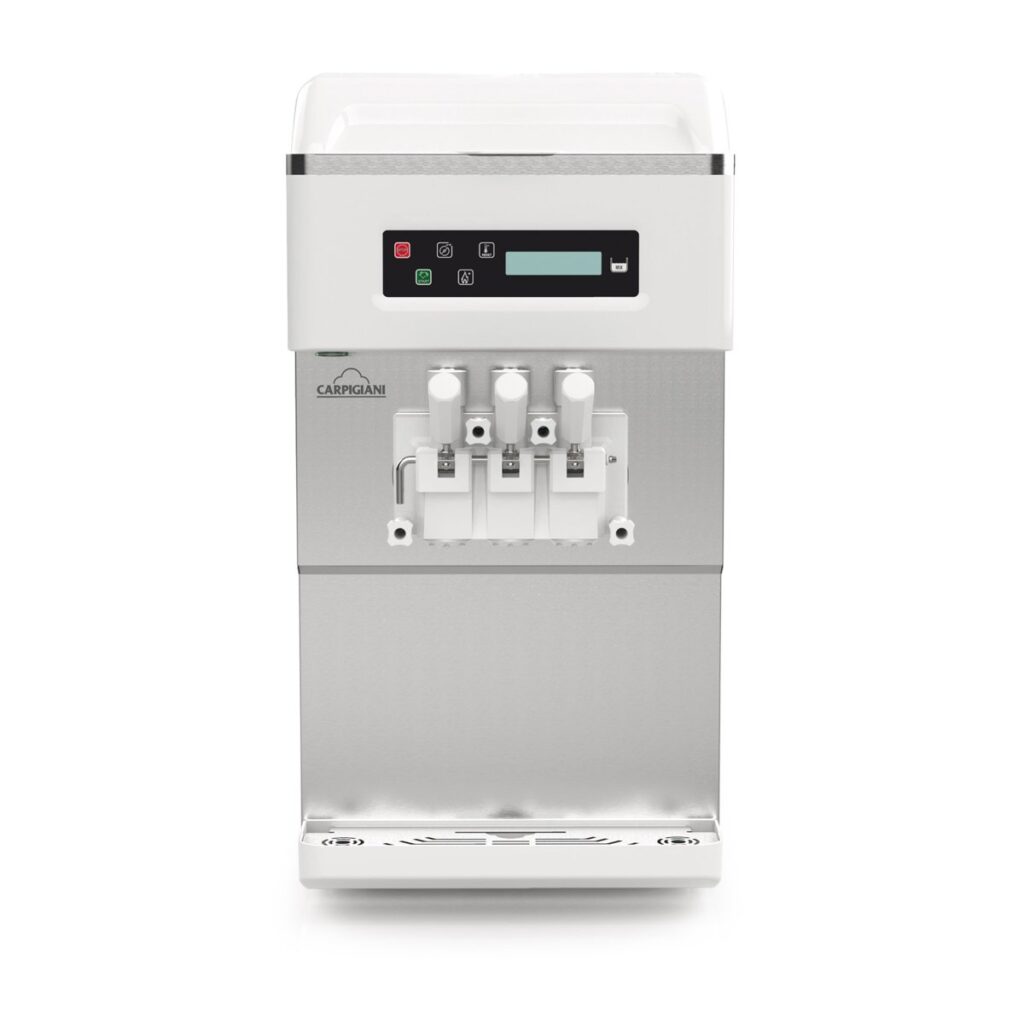

243 T SP
The most compact and simple twin-twist machine to produce more than 300 servings of 75g in one hour
The ideal Carpigiani express gelato and soft serve machine for soft gelato, sorbets and frozen yoghurt.
- ✓Hard-O-Tronic®: quick, simple electronic control of soft serve consistency
- ✓Self-pasteurisation: full clean needed only every 42 days maximum
- ✓Black-out protection: safe automatic restart after power or water failure
- ✓Independent cylinders: two different consistencies at the same time
Catalogue
The most compact and simple twin-twist machine to produce more than 300 servings of 75g in one hour
The ideal Carpigiani express gelato and soft serve machine for soft gelato, sorbets and frozen yoghurt.
- ✓Hard-O-Tronic®: quick, simple electronic control of soft serve consistency
- ✓Self-pasteurisation: full clean needed only every 42 days maximum
- ✓Black-out protection: safe automatic restart after power or water failure
- ✓Independent cylinders: two different consistencies at the same time
Read more
The system can either be pump-fed or gravity-fed, with overrun adjustment even with a full hopper. Customisation with mixed system also possible: 1 pump feed and 1 gravity feed.
It is equipped with the Star Door that allows fitting the 18 different nozzles that can be purchased individually or in the optional kit. The machine can be equipped with the Winter Door, which allows the use of two completely separate cylinders by inhibiting the middle part.
Technology & features
What the 243 T SP does for you
30 features in 6 groups. The tabs change by themselves until you choose one.
Hard-O-Tronic® (H-O-T)
Carpigiani’s electronic consistency control lets the operator set and change soft serve texture quickly, from light vanilla to dense chocolate, sorbet or frozen yoghurt.
Gravity feed – Version G with overrun adjuster
Feed tube holes of different diameters naturally dose air into the mix; overrun can be adjusted even with a full tank using the overrun adjuster.
Pressurised pump – Version P
Stainless steel pressurised pump with advanced thermoplastic polymer gears; holes in the pump regulator set overrun between 40% and 80%, adjustable even with a full tank.
Removable high-efficiency POM beater
Removable beater with interchangeable food-safe plastic blades and shaft, designed to produce a smooth, creamy soft serve.
Tank agitator with adjustable speed
Keeps the stored mix from separating into layers and improves heat exchange during pasteurisation.
Adjustable dispensing speed
Delivery flow can be adjusted to suit different portion volumes and production requirements.
Removable pump shaft
The pump shaft can be removed, simplifying cleaning and supporting hygiene and reliability.
High-performance gearmotors and condensers
New high-performance electric gearmotors and condensers are presented as the machine’s energy-saving features.
Air cooling with rear chimney
The air-cooled design vents through a rear chimney, optimising installation space and allowing machines to be placed side by side.
Modular programmable fan speed
Fan motor management offers three settings: prioritising hourly output, running quietly with low noise, or fixed operator-set speeds.
Automatic self-pasteurisation
The standard heat-treatment system lets you choose the washing interval up to 42 days; if the full clean is not done in time the machine locks automatically.
Black-out and water outage protection
After a power or water failure the machine checks time and temperature; if the mix is safe it resumes, otherwise it starts a pasteurisation cycle or requests washing.
Multifunctional Cleaning Button with hot cleaning
Pump and beater can be switched on individually or together for cleaning; hot cleaning runs the stirrer while heating the cylinder to dissolve fat residues.
Independent cylinders
On the 243 T SP each cylinder runs independently, so products of different consistencies can be made simultaneously.
1.35 L direct expansion cylinder
The direct expansion freezing cylinder optimises refrigeration, shortening freezing times and cutting energy waste; a relocated feed hole makes pre-loading simple and safe.
Star Door
The Star Door dispensing door allows the new shaped nozzles and the single-portion kit to be fitted.
Self Closing levers
Automatic lever-closing taps stop the product flow after dispensing to avoid waste, and are easy to assemble and disassemble.
Scheduled start
Production, pasteurisation and storage programs can be timed to run automatically, such as overnight, so the machine is ready the next day.
Button lock
Display buttons can be locked for extra security against accidental operator errors.
Versatile machine (single-side operation)
Three operating functions let you use only the left or right side in low season and both sides at peak times; used with the optional Winter Door.
Ergonomic design
Corners are more rounded in the areas where the operator works, lowering the risk of knocks and injuries.
QR Code equipment information
A QR Code on the front of the machine links to the latest instruction manual and Carpi Care and Carpi Clean kit details.
Optional
Teorema remote control and diagnosis
Online system for remote monitoring of machine operation; Carpigiani technicians can see configuration parameters remotely, making service faster.
Optional
Nozzles
Optional shaped nozzles let you choose and customise the look of each soft serve.
Optional
Monoportion kit
A kit of nozzles suited to filling small cups, cannoli and other single-portion frozen desserts.
Optional
Blender
Built-in blender uses disposable spoons to mix toppings or syrups into a soft serve cup conveniently and hygienically.
Optional
Pump / Gravity kit
Allows one cylinder to be pump-fed and the other gravity-fed at the same time.
Optional
Winter Door
Blocks the central twist section so the two cylinders operate completely separately, adding flexibility in both washing and production.
Optional
Carpi Care kit & Carpi Clean kit
Dedicated kits of replacement gaskets and cleaning brushes, ordered through your dealer, to keep the machine in hygienic condition.
Optional extras can be added to your order or, for most items, fitted later. All Carpigiani options and accessories →
Safety
- More operational safety and more control during production.
See the 243 T SP in action
Complete your set-up
Frozen yoghurt premix
Rubicone froyo mixes: classic, low fat, vegan and high-protein.
Soft serve mix
Creamy and fruit soft serve bases: just add water or milk.
Açaí mix
Serve smooth açaí soft serve straight from the machine.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Toppings
Sauces, crocks and crumbles to finish every serve.
Cones
Waffle and flat-top cones in every size.
Cups
Gelato, froyo and drink cups for every serve size.
Spoons
Paper spoons for gelato, frozen yoghurt and açaí.
Training
Hands-on soft serve and gelato courses with Carpigiani Gelato University.
Demo and training
See the 243 T SP run at a free showroom demo, then get one-on-one training on your machine, its programs and recipes.
Trade in and upgrade
Put the value of your current machine towards the 243 T SP, with finance to spread the cost.
Service and consumables
Genuine Carpigiani parts, Carpi Care and Carpi Clean kits, preventive maintenance and repairs by our technicians.
Downloads
Key specifications
The Carpigiani 243 T SP is a twin-twist countertop soft serve machine producing about 320 servings of 75 g an hour with the pump model, or 268 with the gravity model, with a 1.35 L freezing cylinder. It runs on 240 V single phase, measures 76.7 × 44 × 86.5 cm and weighs 190 kg.
- Output per hour320 portions for pump version; 268 for gravity version (75 g servings)
- Flavours2 Flavours +
- Hopper5+5 pump version; 8+8 gravity version L
- Cylinder1.35 L
- FeedGravity Feed | Pump Feed
- CoolingAir Cooling
- Power supply240 V / 50 Hz / 1 Ph
- Dimensions76.7 × 44 × 86.5 cm
Figures are the manufacturer’s published specifications; output depends on the mix and the room temperature.
Technical specifications
| Weight | 190 kg |
|---|---|
| Dimensions | 76.7 × 44 × 86.5 cm |
| Power Supply | |
| Cooling System | |
| Feeding System | |
| No of Flavours | |
| Flavours | 2+1 |
| Hourly Production | 320 portions for pump version; 268 for gravity version (75 g servings) |
| Tank Capacity | 5+5 pump version; 8+8 gravity version L |
| Cylinder Capacity | 1.35 L |
