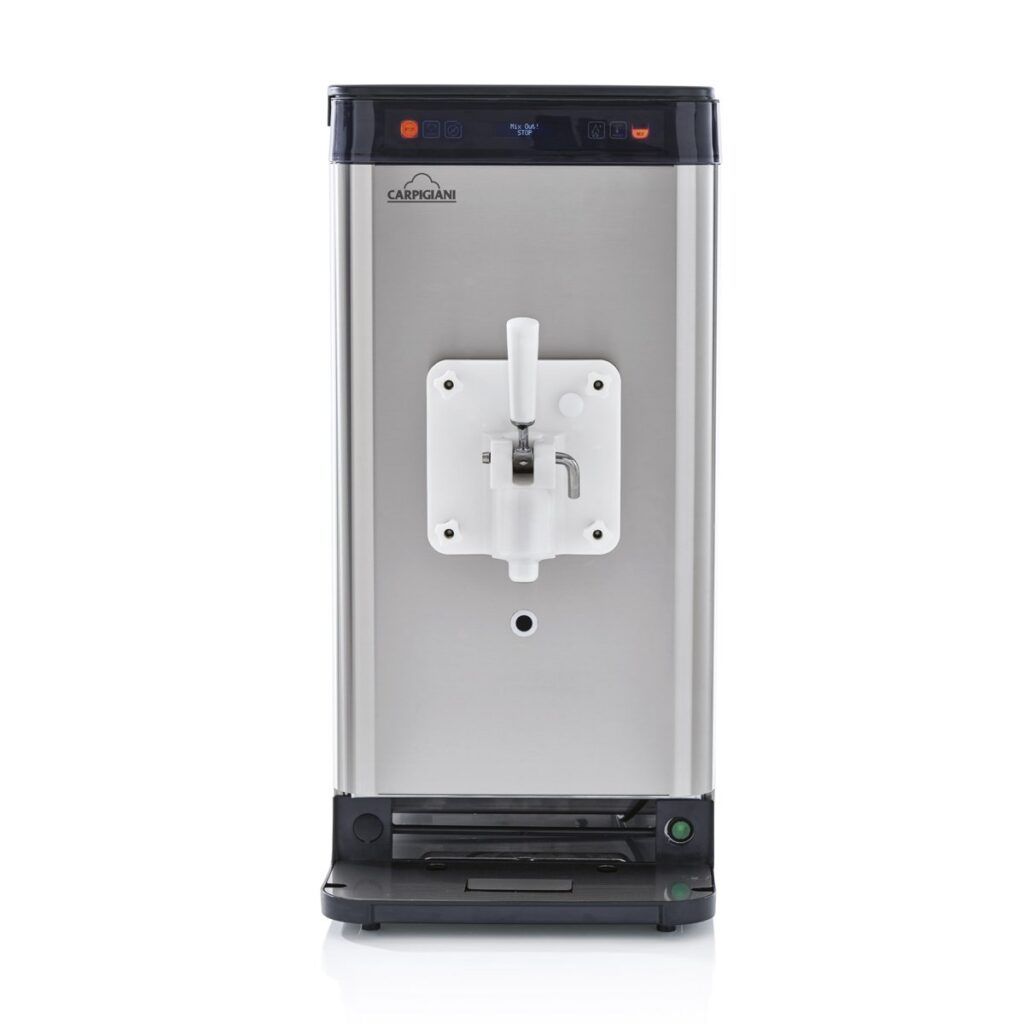

161 K SP Shake Acai Machine
Counter-top shake machine to produce more than 120 servings of 0.4 L in one hour
The Carpigiani machine for making delicious, creamy shakes.
- ✓Hard-O-Tronic®: set shake consistency for any style
- ✓Start Up Phase builds compact, creamy shake structure
- ✓Gravity feed with calibrated holes doses mix and overrun naturally
- ✓Helical beater maximises extraction; adjustable ice crystal size
Catalogue
Counter-top shake machine to produce more than 120 servings of 0.4 L in one hour
The Carpigiani machine for making delicious, creamy shakes.
- ✓Hard-O-Tronic®: set shake consistency for any style
- ✓Start Up Phase builds compact, creamy shake structure
- ✓Gravity feed with calibrated holes doses mix and overrun naturally
- ✓Helical beater maximises extraction; adjustable ice crystal size
You can choose to integrate a mixer to mix toppings and other ingredients. The hopper capacity is 18 L.
Read more
The machine is air-cooled.
Technology & features
What the 161 K SP Shake Acai Machine does for you
22 features in 5 groups. The tabs change by themselves until you choose one.
Hard-O-Tronic® (H-O-T)
Electronic control lets you easily change shake consistency to suit the product or style, from classic milkshakes to creamy modern shakes with more pronounced ice crystals.
High Efficiency Helical Beater
A metal-bodied helical beater with interchangeable plastic flap maximises extraction performance and lets you adjust ice crystal size for your shake style.
Adjustable dispensing speed
Delivery flow can be adjusted to suit different volume and speed requirements.
High-performance electric gearmotors and condensers
New high-performance gearmotors and condensers are presented as a running-cost saving.
Automatic self-pasteurisation (42-day cleaning interval)
Choose when to wash, up to a 42-day maximum; if the full clean is not done by the set day the machine locks automatically for hygiene safety.
Black-out and water outage protection
After a power or water failure the machine resumes if time-temperature data show the mix is unaffected; otherwise a self-pasteurising unit runs a pasteurisation cycle and alerts the operator.
Multifunctional cleaning button with hot cleaning
Run pump and beater separately or together for cleaning; hot cleaning heats the cylinder while stirring to quickly dissolve production residues.
Carpi Care kit and Carpi Clean kit
Dedicated gasket and brush kits, available from your dealer, to keep the machine hygienic and clean.
Start Up Phase software
At start-up Carpigiani software modulates cylinder temperature to create an ideal compact, creamy shake with ice crystals present.
Gravity feed – Version G
Different hole diameters in the feed tube naturally meter mix with air, suiting distinctive creamy, compact shake styles.
7 L direct expansion cylinder
Optimised refrigeration speeds freezing and avoids energy waste; the larger cylinder supports high production, and a repositioned feed hole makes pre-loading simple and safe.
Tank agitator
Keeps the mix from separating in storage and improves heat exchange during pasteurisation.
Button lock
Display buttons can be locked for added security against accidental errors.
Scheduled start
Production, pasteurisation and storage programs can be timed to run automatically, such as overnight, so the machine is ready next day.
Tank lids
161 K has an ergonomic plastic hopper lid, 191 K a rubber lid that opens without removal, and K Shake a transparent ergonomic lid for inspection.
Front panel options
191 K comes with a classic plastic front panel; 161 K and K Shake have stainless steel front panels.
Ergonomic design
Corners are more rounded where the operator works to reduce the risk of injury.
QR code equipment information
Scanning the front QR code opens the latest instruction manual and Carpi Care and Carpi Clean kit information.
Optional
Teorema
Online monitoring and diagnosis via tablet, phone or PC; technicians can see configuration parameters as if at the machine.
Optional
Mixer Shake
An integrated mixer incorporates toppings and inclusions into the shake.
Optional extras can be added to your order or, for most items, fitted later. All Carpigiani options and accessories →
Performance and Quality
- Gravity mix feeding system
Safety
- More operational safety and more control during production
See the 161 K SP Shake Acai Machine in action
Complete your set-up
Shake premix: in stock now
Ready-to-use shake and soft serve base, available for immediate delivery across Australia.
Açaí mix
Serve smooth açaí soft serve straight from the machine.
Custom base recipe
Our in-house chefs develop a shake base to your spec: sweetness, creaminess, dairy or plant-based. Backed by Rubicone and Carpigiani.
Gourmet shake flavours
34 ready-to-use flavours for milkshakes and thickshakes.
Toppings & sauces
Sauces and crunchy crocks to finish gourmet shakes.
Crumbles
Crunchy crumbles for sundaes, shakes and cones.
Drink cups
Shake and drink cups from 8oz to 24oz, custom-printed with your brand on request.
Training
Hands-on training for your team: production, cleaning and machine care.
Demo and training
See the 161 K SP Shake Acai Machine run at a free showroom demo, then get one-on-one training on your machine, its programs and recipes.
Trade in and upgrade
Put the value of your current machine towards the 161 K SP Shake Acai Machine, with finance to spread the cost.
Service and consumables
Genuine Carpigiani parts, Carpi Care and Carpi Clean kits, preventive maintenance and repairs by our technicians.
Related guides: A frozen dessert menu for cafés, hotels and restaurants · Açaí mix for soft serve, bowls and smoothies
Delivered and installed all over Australia
We deliver equipment and ingredients to your door anywhere in Australia, and our technicians install and commission the equipment and train your team.
Call 1800 625 677, or see our service and support.
Key specifications
The Carpigiani 161 K SP Shake Acai Machine is a single-flavour açaí machine producing about 125 shakes of 0.4 L an hour, with an 18 L hopper and a 7 L freezing cylinder. It runs on 240 V single phase at 1.85 kW with a 12.8 A fuse, measures 40 × 77 × 83 cm and weighs 100 kg.
- Output per hour125 (0.4 L servings)
- Flavours1 Flavour
- Hopper18 L
- Cylinder7 L
- FeedGravity Feed
- CoolingAir Cooling
- Power supply240 V / 50 Hz / 1 Ph
- Rated power1.85 kW
Figures are the manufacturer’s published specifications; output depends on the mix and the room temperature.
Technical specifications
| Weight | 100 kg |
|---|---|
| Dimensions | 40 × 77 × 83 cm |
| Power Supply | |
| Cooling System | |
| Feeding System | |
| No of Flavours | |
| Hourly Production | 125 (0.4 L servings) |
| Tank Capacity | 18 L |
| Cylinder Capacity | 7 L |
| Rated Power Input | 1.85 kW |
| Fuse Size | 12.8 A |
