Millennium JX Gelato Display Cabinet
Catalogue
Key specifications
- Temperature-20 / +2 °C (dual temperature, 12+12)
- RefrigerantR290
- DefrostReverse cycle
- Climate class7 (35 °C / 75% RH)
- Cabinet typeScoop
- BrandISA
- InstallationPlug-in | Remote (optional)
- ConfigurationDual temperature | 1 Shelf (optional) | R290
Figures are the manufacturer's published specifications.

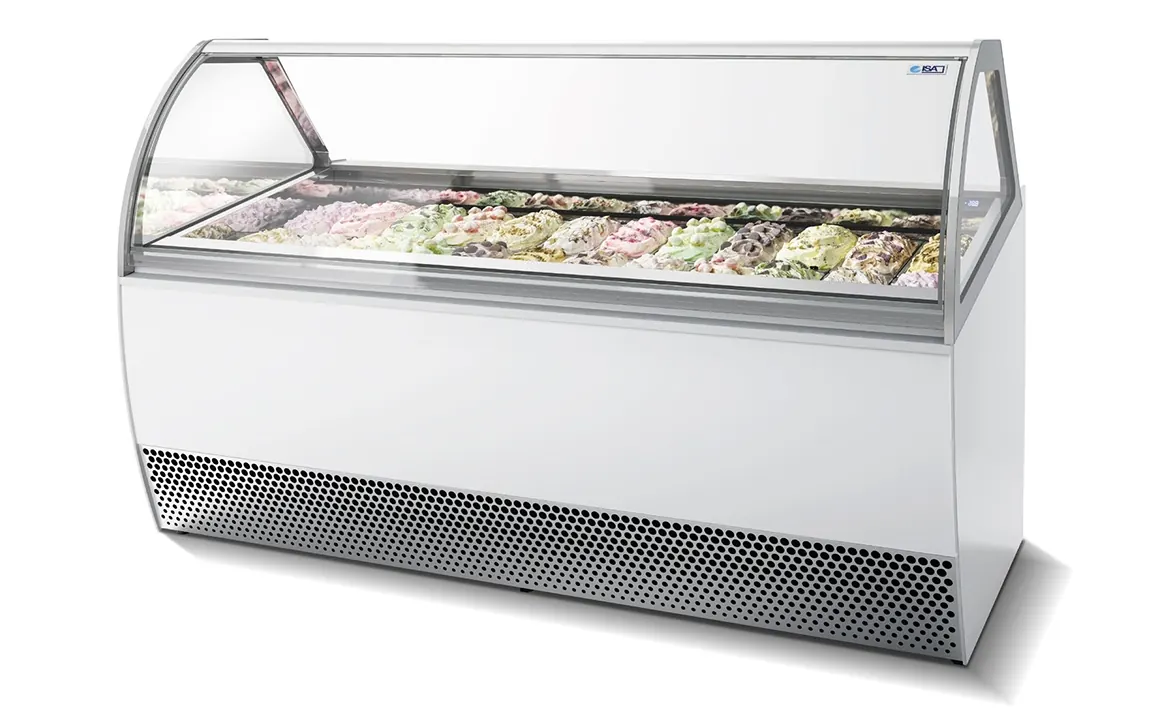

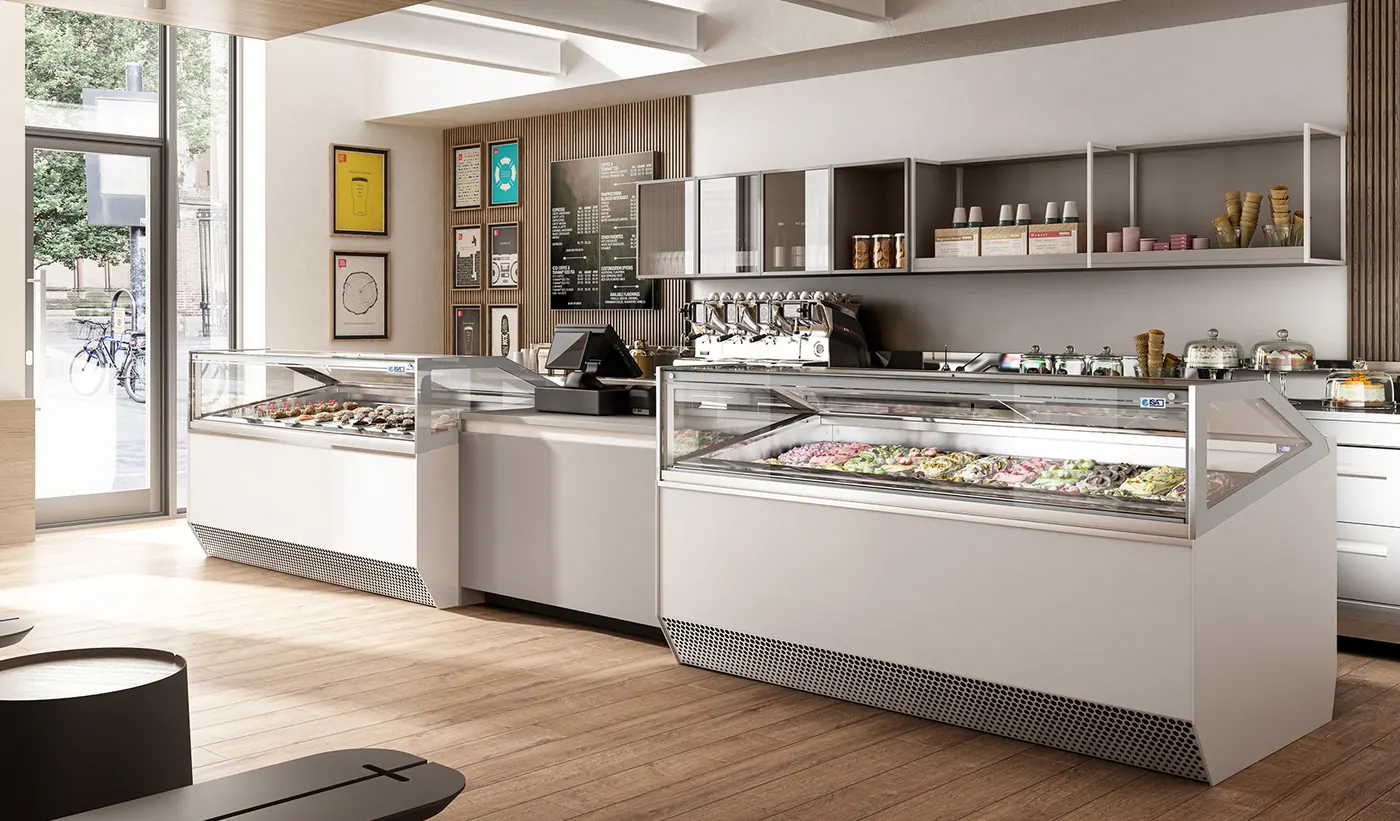

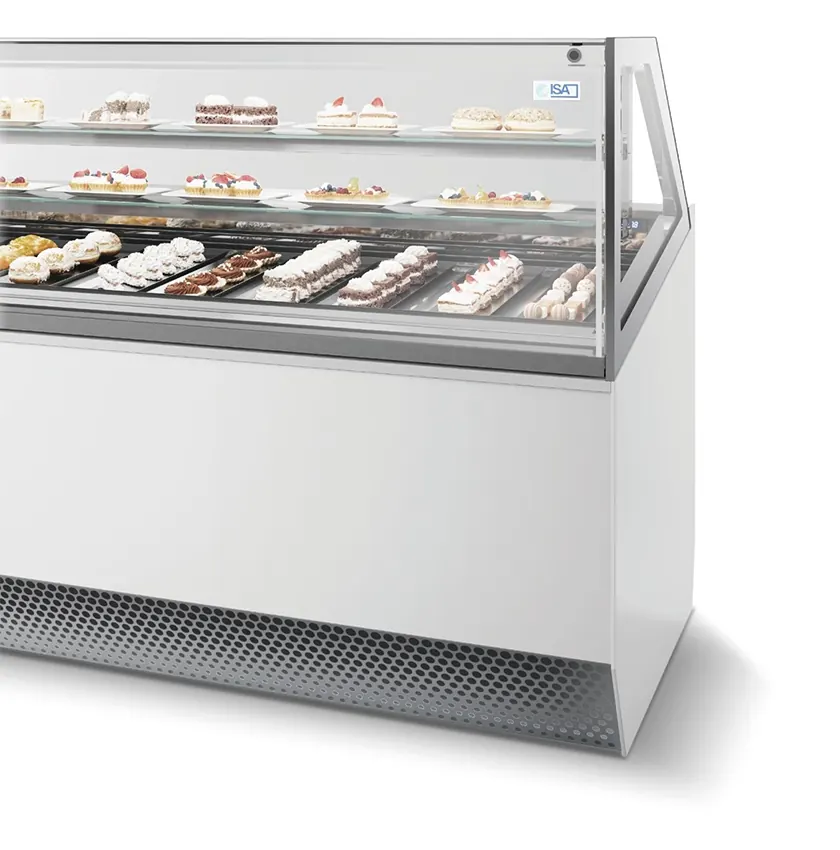

About the Millennium JX
Millennium is the gelato display cabinet that bars, gelaterias and vendors around the world have chosen for its reliability. The current version adds high-efficiency R290 refrigeration and a wide choice of design and materials.
The JX is the 12+12 dual-temperature version: two independent condensing units cool the two halves of the well separately, so two different temperatures can be programmed in the same cabinet. R290, reverse-cycle defrost and climate class 7.
What makes the Millennium JX different

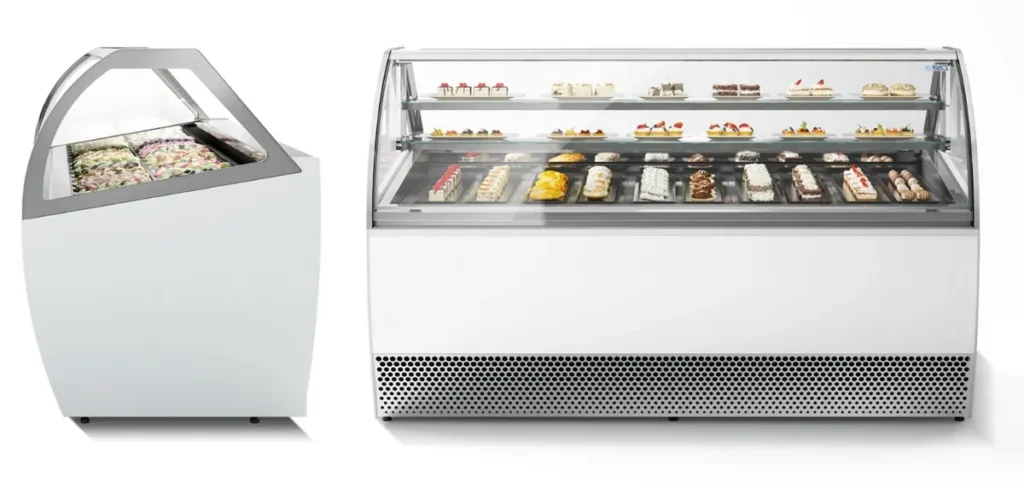

A 7-degree well and even LED light
The well is inclined at 7 degrees and lit by internal LED strips with continuous, even light, so the gelato is easy to see from the customer side.
Clear glass in humid conditions
Heated side glass and a single heated front glass keep condensation off the panes, even in difficult climates.

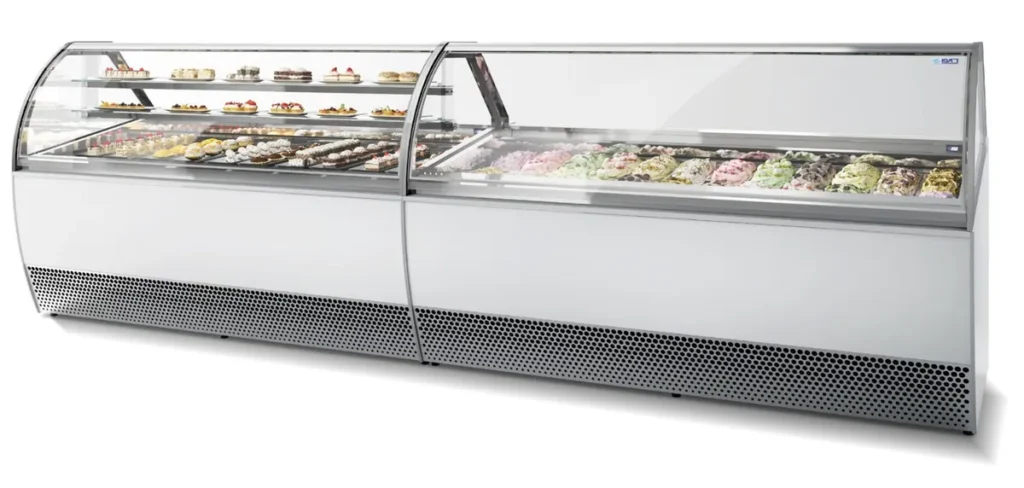

Cabinets that join cleanly
Concealed side fasteners and self-supporting glass panes allow several Millennium cabinets to be installed side by side as one run.
R290 dual-circuit refrigeration
The refrigeration unit runs on R290, a natural refrigerant, with a hermetic compressor and reverse-cycle defrost. ISA quotes 30% less vibration and noise than its R404A models and up to 10% lower energy use. Cyclopentane insulation performs about 20% better than conventional foam, which helps the cabinet hold climate class 7 (35 °C and 70% humidity).
Shorter defrost cycles
Automatic reverse-cycle defrost finishes in about half the time of a hot-gas cycle, so the surface of the gelato stays intact and the cabinet uses less energy. Pastry versions defrost by compressor stop. High-efficiency electronic condenser fans add to the saving.

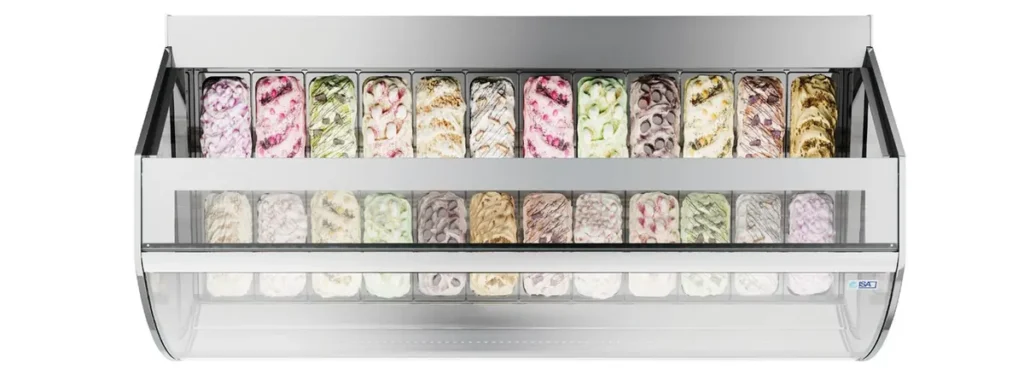

Any RAL colour
The sides are high-density wood fibre and the front panel and ventilation grille are sheet metal. Any colour in the RAL range can be specified in a 30-gloss matt finish.

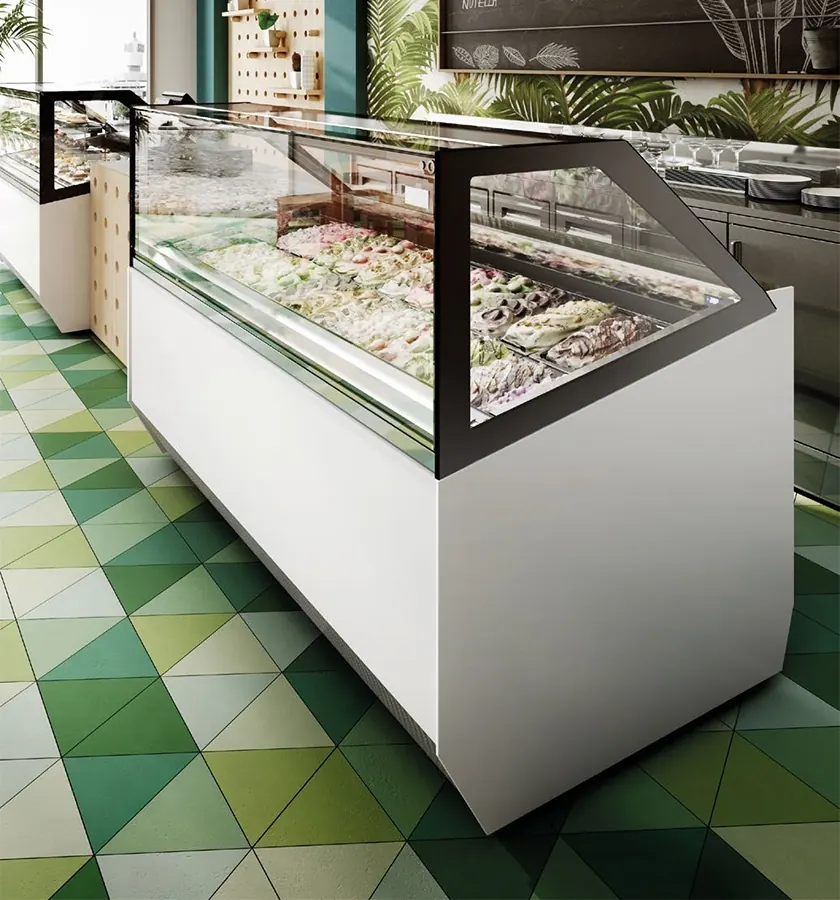

Daily operations
The rear curtain closes magnetically on side runners and can be used with one hand; sliding polycarbonate doors are the alternative. Stainless steel tray spacers sit at the ends of the well and between the pans. The fixed top glass holds service accessories, and a scoop washer with tap or pull-out spray, a storage tray and a cone holder can be added at the rear right.

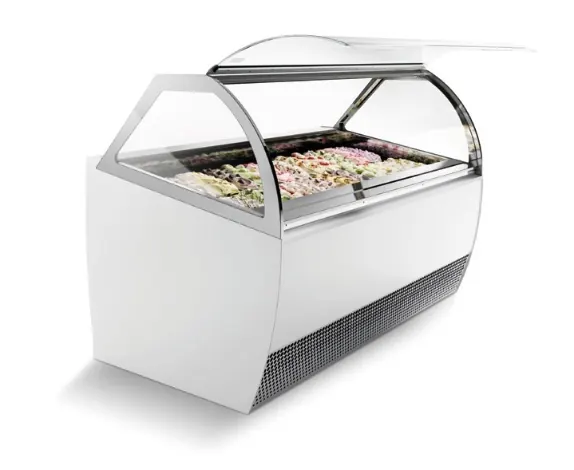

Easy access to the well
On the Millennium LX the front glass lifts upward on a servo-assisted mechanism; on the Millennium ST it opens downward. Both have a retractable handle. A double 1-inch drain valve in the base of the well makes deep cleaning easy, and the sealed front glass and curtain cut heat loss and keep the well hygienic.

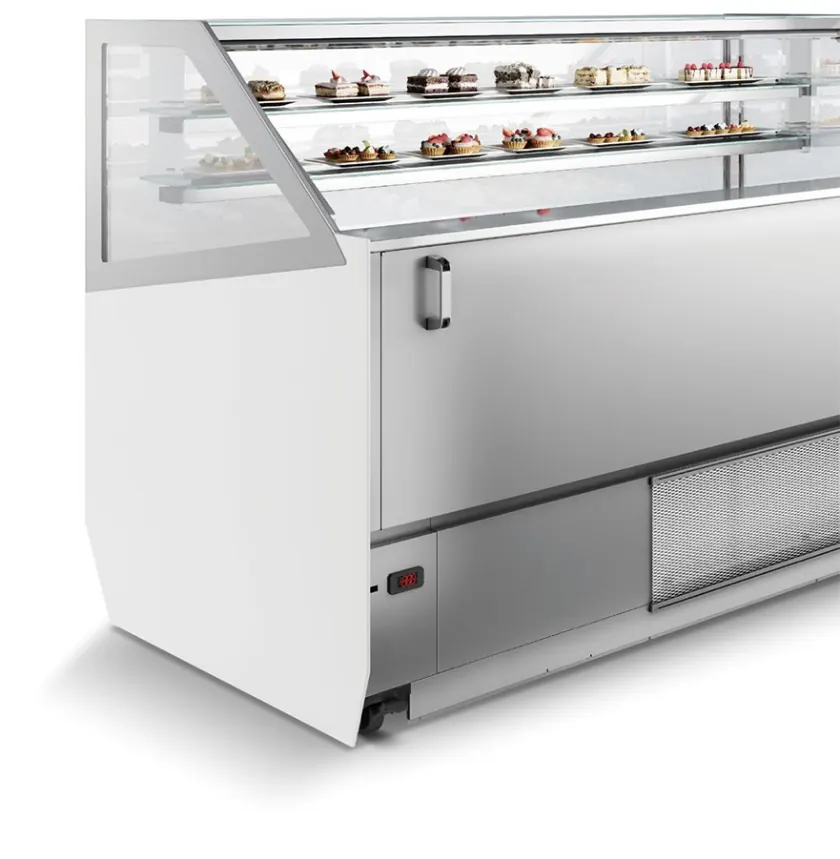

Castors, handles and a magnetic dust filter
Castors with rear brakes, height-adjustable feet and rear handles make the cabinet easy to position; side handles are optional. The condenser dust filter closes magnetically and is simple to clean, and the rear cover gives fast access to the condensing unit even with the platform fitted.
Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in Australia; ask us which sizes are available and the lead time for the rest.
| Version | Refrigerant | Height (cm) | Length (cm) |
|---|---|---|---|
| Millennium LX | R290 | 135 | 155 |
| Millennium LX | R290 | 135 | 170 |
| Millennium LX | R290 | 135 | 190 |
| Millennium LX | R290 | 135 | 220 |
| Millennium ST | R290 | 135 | 120 |
| Millennium ST | R290 | 135 | 155 |
| Millennium ST | R290 | 135 | 170 |
| Millennium ST | R290 | 135 | 190 |
| Millennium ST | R290 | 135 | 220 |
Get the Millennium JX catalogue
Tell us where to send it and we will email you the PDF, with related and new products picked for you.
Millennium JX questions
What does 12+12 dual temperature mean?
The well is split into two 12-pan halves, each with its own condensing unit, so sorbets and creamy flavours, or gelato and granita, can be held at different temperatures in one cabinet.
What is the difference between Millennium JX, LX and ST?
All three share the Millennium construction. LX has curved glass that lifts upward, ST has straight glass that opens downward, and JX is the dual-temperature 12+12 configuration.
What climate class is the Millennium JX?
Class 7, tested at 35 °C and high humidity, with R290 refrigerant and reverse-cycle defrost.
Trade in and upgrade to a new ISA cabinet
Ready for a better display? Trade in your existing cabinet and upgrade to a new ISA cabinet. Ask us about our current trade-in and upgrade campaign or call 1800 625 677.
Preventive maintenance service: keep your cabinet performing at its best with scheduled preventive maintenance from our service team.
Talk to us or call 1800 625 677
Make it, harden it, flavour it, serve it
Majors Group supplies the machines, blast freezers, Rubicone ingredients, tubs and packaging that go with this cabinet.
Batch freezers
Carpigiani Labo and Ready machines to make the gelato.
Blast freezers
Techfrost blast freezers to harden and store gelato and pastry.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Showcase tubs & tools
Gelato tubs, spatulas and scoops for your showcase.
Specifications
| UOM | Unit |
|---|---|
| Refrigeration | Ventilated |
| Defrost | Reverse cycle |
| Climate class | 7 (35°C / 75% RH) |
| Temperature | |
| Options | 12+12-JX (dual temperature) |
| Refrigerant | R290 |
| Cabinet type | |
| Brand | |
| Installation | Plug-in, Remote (optional) |
| Configuration | Dual temperature, 1 Shelf (optional), R290 |
| Opening system | Servo, bottom-up opening system, Openable glass structure towards the bottom, Polycarbonate sliding doors |
| Worktop | Stainless steel |
| Lighting | LED 5700 K |
| Handling | Swivel castors with brake |
| Colours | White RAL 9003 |
| Heights (cm) | 135 |
| Lengths (cm) | 120, 155, 170, 190, 220 |
