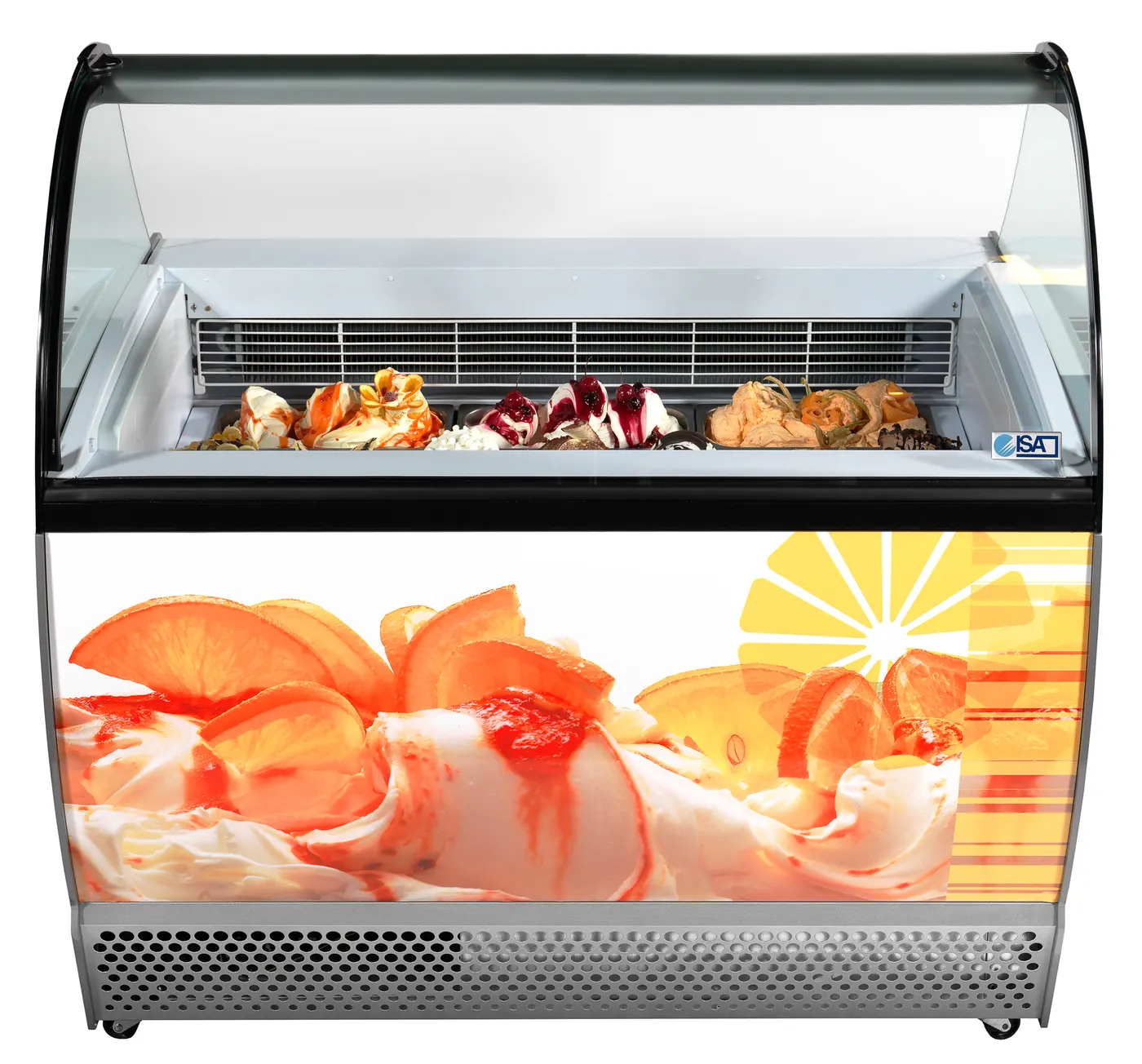

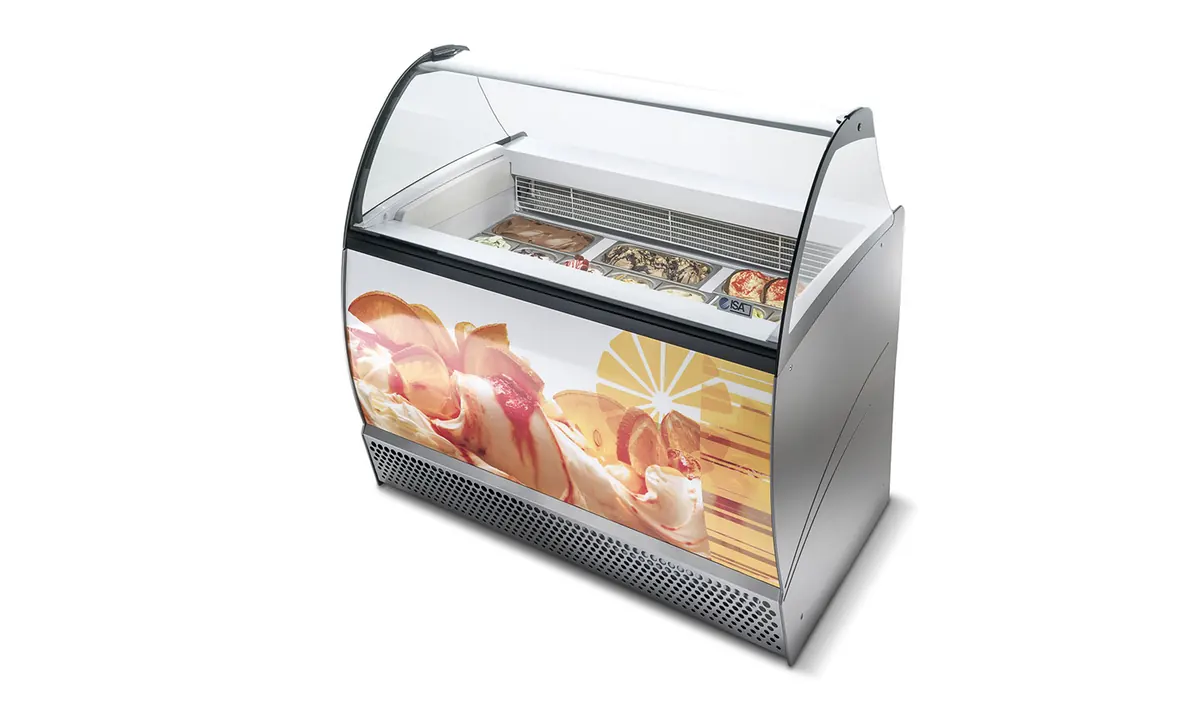

Isabella 10 LX Ice Cream Display Cabinet
Ten pans, static refrigeration.
Call us 1800 625 677
Part of the ISA Isabella range: compare both models.
Catalogue
Key specifications
The Isabella 10 LX Ice Cream Display Cabinet is a gelato display cabinet that has space for 10 tubs of 5 L and operates at −16 to −10 °C. It runs on 240 V single phase and draws 590 W (3 A), measures 141.8 × 97.8 × 145 cm and weighs 155 kg.
- Tubs10 Tubs (5 L)
- Temperature-16 / -10 °C
- Compressor1 - Hermetic
- RefrigerantR290
- DefrostHot gas
- Electrical Input590 W / 3 A
- Power supply240 V / 50 Hz / 1 Ph
- Dimensions141.8 × 97.8 × 145 cm
Figures are the manufacturer's published specifications.
About the Isabella 10 LX
Isabella is ISA’s promotional ice cream cabinet with static refrigeration, a double finned evaporator and automatic hot-gas defrost. It is a cost-effective way to display bulk ice cream and gelato in cafes, kiosks and small stores.
The 10 LX is the 132 cm version with ten pans, curved LX glass, a storage cell below the well, R290 natural refrigerant and climate class 4.
What makes the Isabella 10 LX different

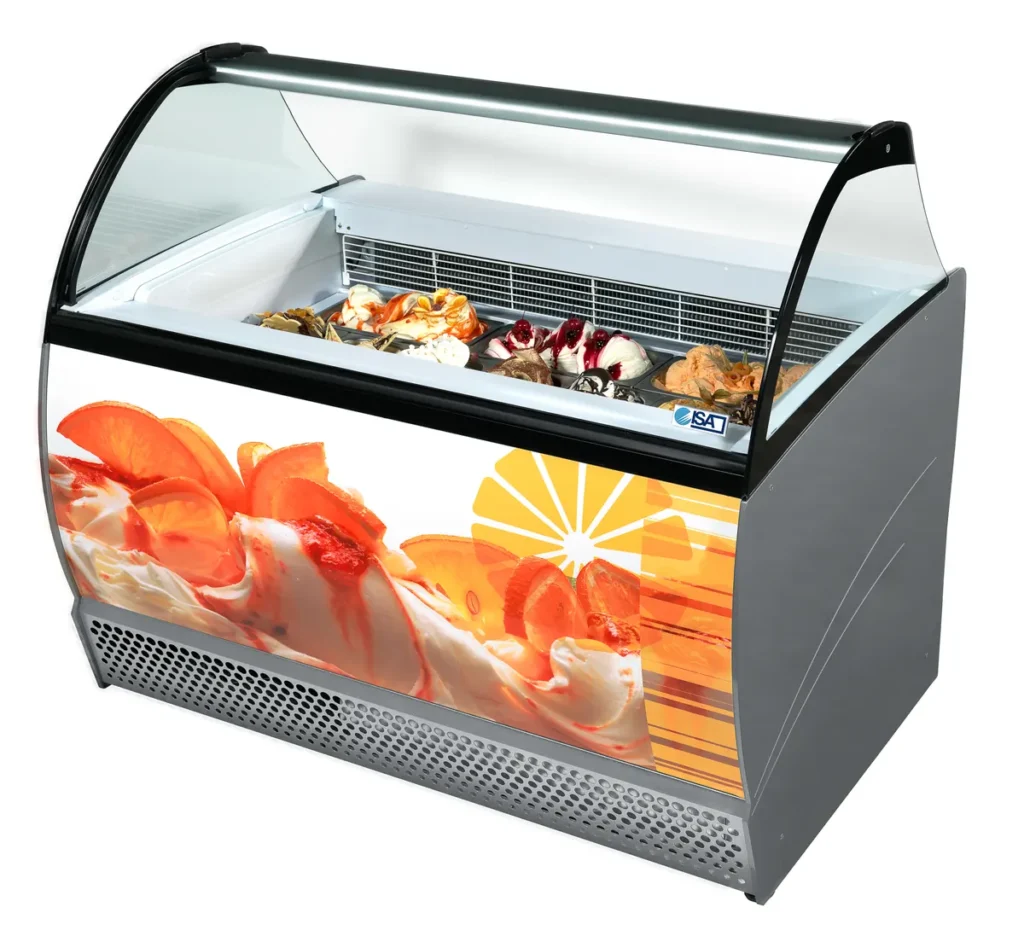

Static cooling with a storage cell
Static refrigeration with a double finned evaporator and automatic hot-gas defrost. One-piece body with CO2-blown, HCFC- and HFC-free polyurethane insulation; plastic-coated steel inside and out with laminated side panels. A double level of 120 mm pans can be fitted, and a static storage cell with foamed evaporator sits below. Tempered curved LX glass, LED canopy, operator-side roller curtain, built-in hermetic condensing unit with electronic control, powder-coated carbon steel frame and four swivel wheels.
Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in Australia; ask us which sizes are available and the lead time for the rest.
| Version | Height (cm) | Length (cm) |
|---|---|---|
| Isabella/Brava LX 13 | 137 | 164 |
Get the Isabella 10 LX catalogue
Tell us where to send it and we will email you the PDF, with related and new products picked for you.
Isabella 10 LX questions
How many pans does the Isabella 10 LX hold?
Ten 5 L pans, with the option of a second level of 120 mm pans.
Is the Isabella 10 LX static or ventilated?
Static, with a double finned evaporator and automatic hot-gas defrost, at a product temperature of -16/-10 °C.
Does it have storage?
Yes. A static storage cell with a foamed evaporator sits below the display well.
Trade in and upgrade to a new ISA cabinet
Ready for a better display? Trade in your existing cabinet and upgrade to a new ISA cabinet. Ask us about our current trade-in and upgrade campaign or call 1800 625 677.
Preventive maintenance service: keep your cabinet performing at its best with scheduled preventive maintenance from our service team.
Talk to us or call 1800 625 677
Make it, harden it, flavour it, serve it
Majors Group supplies the machines, blast freezers, Rubicone ingredients, tubs and packaging that go with this cabinet.
Batch freezers
Carpigiani Labo and Ready machines to make the gelato.
Blast freezers
Techfrost blast freezers to harden and store gelato and pastry.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Showcase tubs & tools
Gelato tubs, spatulas and scoops for your showcase.
Specifications
| Weight | 155 kg |
|---|---|
| Dimensions | 141.8 × 97.8 × 145 cm |
| No of Flavours | |
| Refrigeration | Static |
| Defrost | Hot gas |
| Compressor | 1 – Hermetic |
| Electrical Input | 590W / 3A |
| Climate class | 4 (30°C / 55% RH) |
| Temperature | |
| Options | 10-LX |
| Refrigerant | R290 |
| Power Supply | |
| UOM | Unit |
| Cabinet type | |
| Brand | |
| Installation | Plug-in |
| Glass | Tempered |
| Rear closure | Self-rolling curtain |
| Worktop | White prepainted sheet |
| Lighting | LED 5700 K |
| Handling | Swivel castors with brake |
| Refrigerated storage | Static refrigerated with skin evaporator |
| Heights (cm) | 137 |
| Lengths (cm) | 164 |
| Depth (cm) | 91 |
