Isetta Ice Cream Display Cabinet
Catalogue
Key specifications
The ISA Isetta Ice Cream Display Cabinet is a gelato display cabinet that has space for 6, 10 or 11 tubs and operates at −16 to −10 °C. It runs on 240 V single phase and draws 300 W (2.3 A), measures 93.4 × 87.9 × 113.2 cm and weighs 87 kg.
- Tubs6 / 10 / 11 Tubs
- Temperature-16 / -10 °C
- Compressor1 - Hermetic
- DefrostElectric
- Electrical Input300 W / 2.3 A
- Power supply240 V / 50 Hz / 1 Ph
- Dimensions93.4 × 87.9 × 113.2 cm
- Net weight87 kg
Figures are the manufacturer's published specifications.

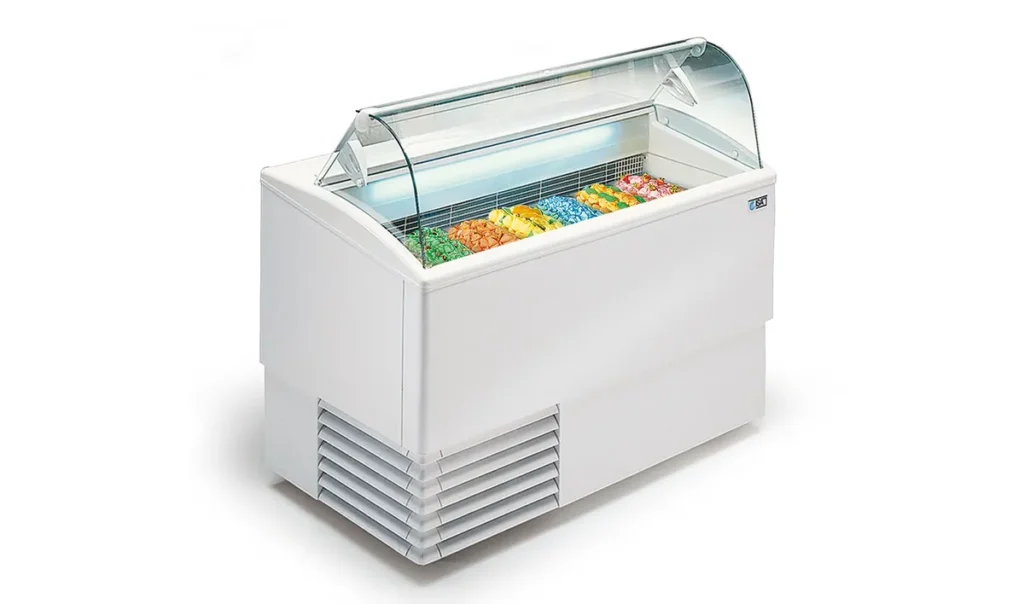

About the Isetta
Isetta is ISA’s compact static ice cream cabinet: a finned evaporator, automatic electric defrost and a one-piece insulated body in a footprint that fits a cafe or kiosk counter.
It is 117 cm high and comes in widths from 82 to 212 cm, holding 4 to 11 pans, with straight (ST) or curved (LX) glass. The TP version is rated for climate class 7.
What makes the Isetta different
Compact static cabinet, ST or LX glass

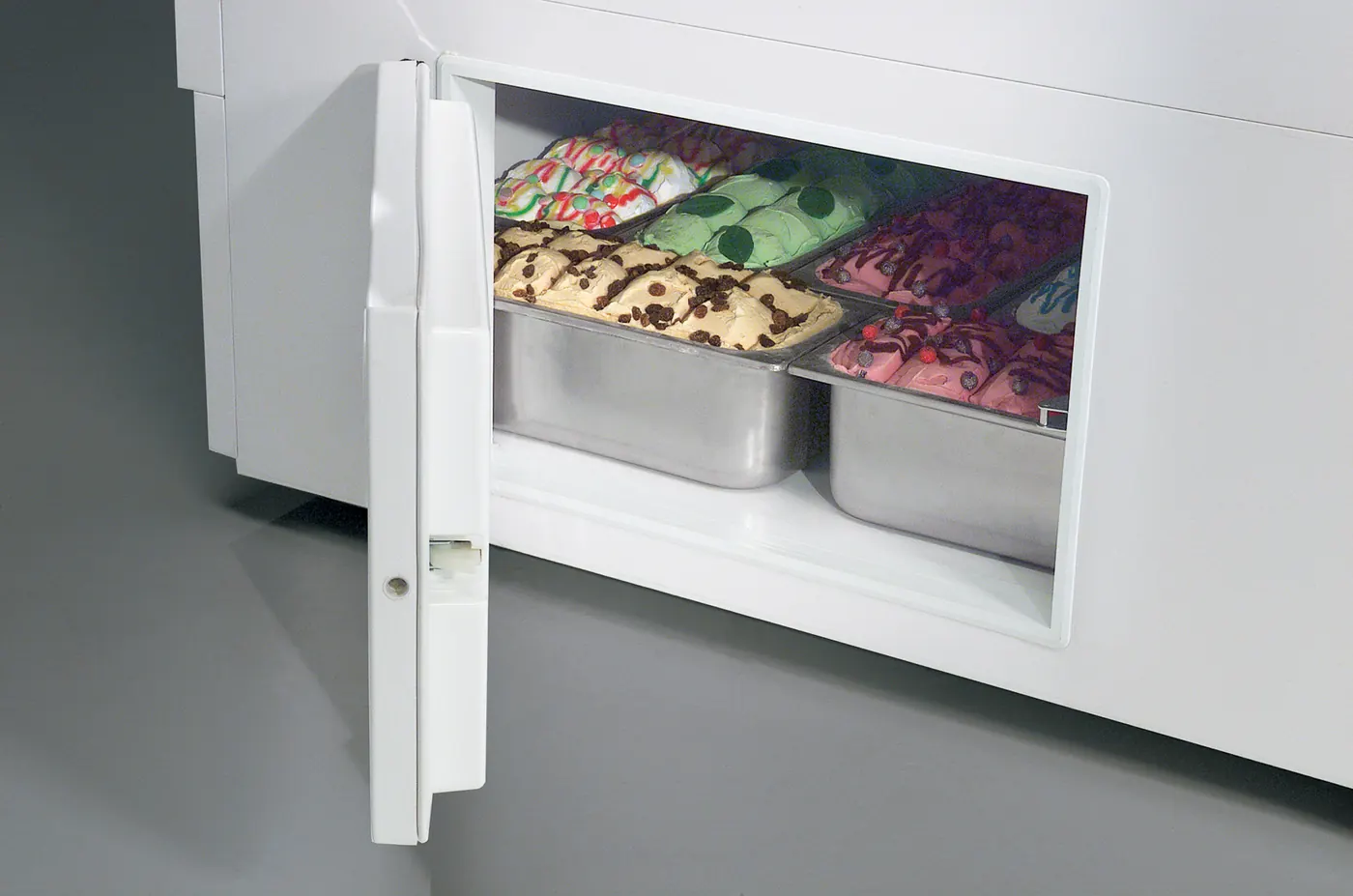

Static refrigeration with a finned evaporator and automatic electric defrost. One-piece body with CO2-blown, HCFC- and HFC-free insulation and plastic-coated steel inside and out. A double level of 120 mm pans can be fitted, with a static storage cell below (except the Isetta 4). Tempered glass in ST (straight) or LX (curved) form, a rear pivoting methacrylate panel on the operator side, LED-lit worktop and built-in hermetic condensing unit with electronic control. The TP version works in climate class 7 (35 °C, 75% RH).

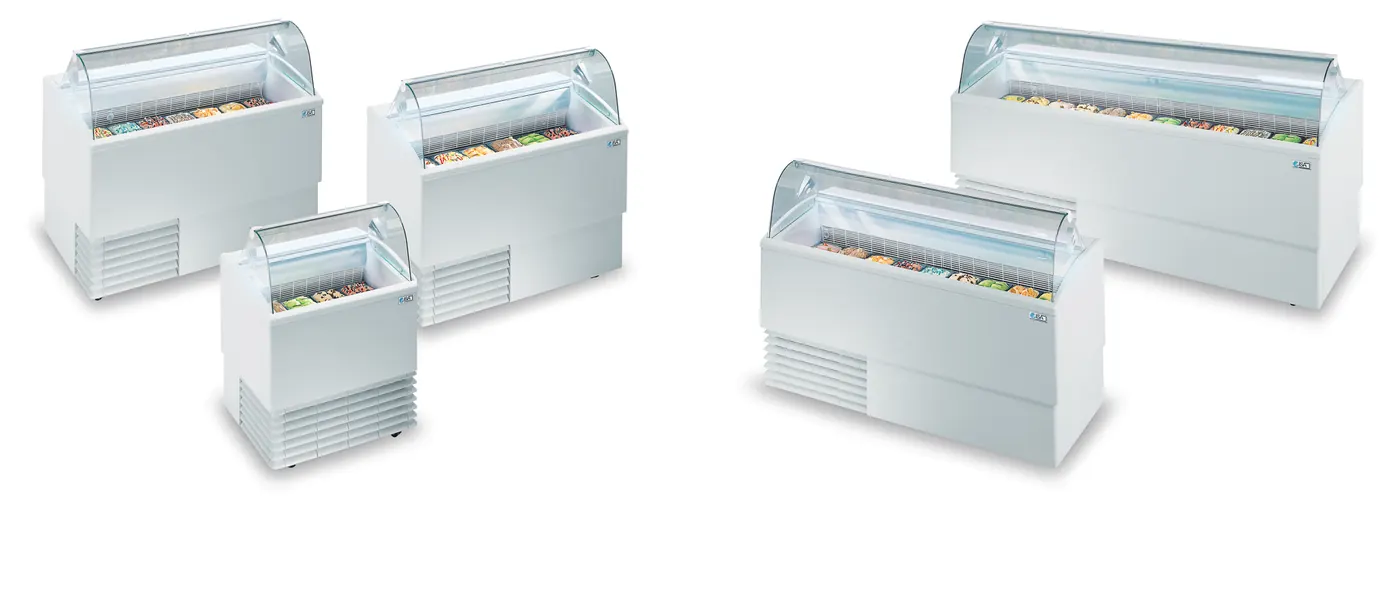

Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in Australia; ask us which sizes are available and the lead time for the rest.
| Version | Height (cm) | Length (cm) |
|---|---|---|
| Isetta/Punto ST 6R P80 | 117 | 118 |
| Isetta/Punto ST 7R P80 | 117 | 135 |
Get the Isetta catalogue
Tell us where to send it and we will email you the PDF, with related and new products picked for you.
Isetta questions
What sizes does the Isetta come in?
Widths of 82, 118, 135, 166 and 212 cm at 117 cm high, holding from 4 to 11 pans, in ST or LX glass versions.
Is the Isetta static or ventilated?
Static, with a finned evaporator and automatic electric defrost, at a product temperature of -16/-10 °C.
Does the Isetta work in hot rooms?
The TP version is rated for climate class 7 (35 °C and 75% humidity).
Trade in and upgrade to a new ISA cabinet
Ready for a better display? Trade in your existing cabinet and upgrade to a new ISA cabinet. Ask us about our current trade-in and upgrade campaign or call 1800 625 677.
Preventive maintenance service: keep your cabinet performing at its best with scheduled preventive maintenance from our service team.
Talk to us or call 1800 625 677
Make it, harden it, flavour it, serve it
Majors Group supplies the machines, blast freezers, Rubicone ingredients, tubs and packaging that go with this cabinet.
Batch freezers
Carpigiani Labo and Ready machines to make the gelato.
Blast freezers
Techfrost blast freezers to harden and store gelato and pastry.
Flavours
Rubicone classic and fruit pastes to flavour any base.
Showcase tubs & tools
Gelato tubs, spatulas and scoops for your showcase.
Specifications
| Weight | 87 kg |
|---|---|
| Dimensions | 93.4 × 87.9 × 113.2 cm |
| No of Flavours | |
| Refrigeration | Static |
| Defrost | Electric |
| Compressor | 1 – Hermetic |
| Electrical Input | 300W / 2.3A |
| Climate class | 7 (35°C / 75% RH) |
| Temperature | |
| Options | 4-LX, 4-ST, 6R-LX, 6R-ST, 7R-LX, 7R-ST |
| Power Supply | |
| Cabinet type | |
| Brand | |
| Installation | Plug-in |
| Glass | Tempered |
| Rear closure | Tilting panel |
| Worktop | White prepainted sheet |
| Lighting | LED 5700 K |
| Handling | Swivel castors with brake |
| Refrigerated storage | Static refrigerated with skin evaporator |
| Heights (cm) | 117 |
| Lengths (cm) | 118, 135 |
| Depth (cm) | 76, 80 |
