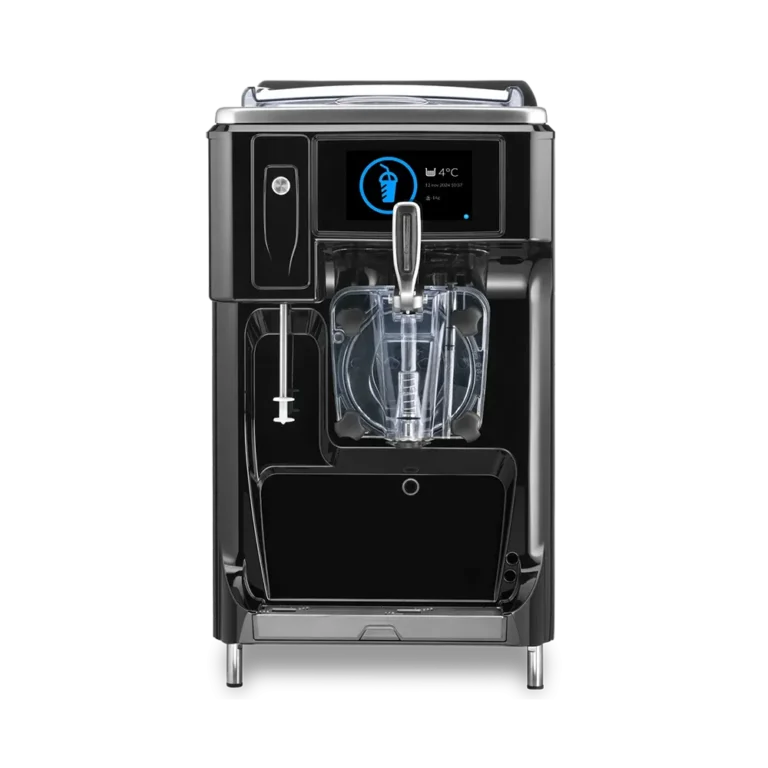

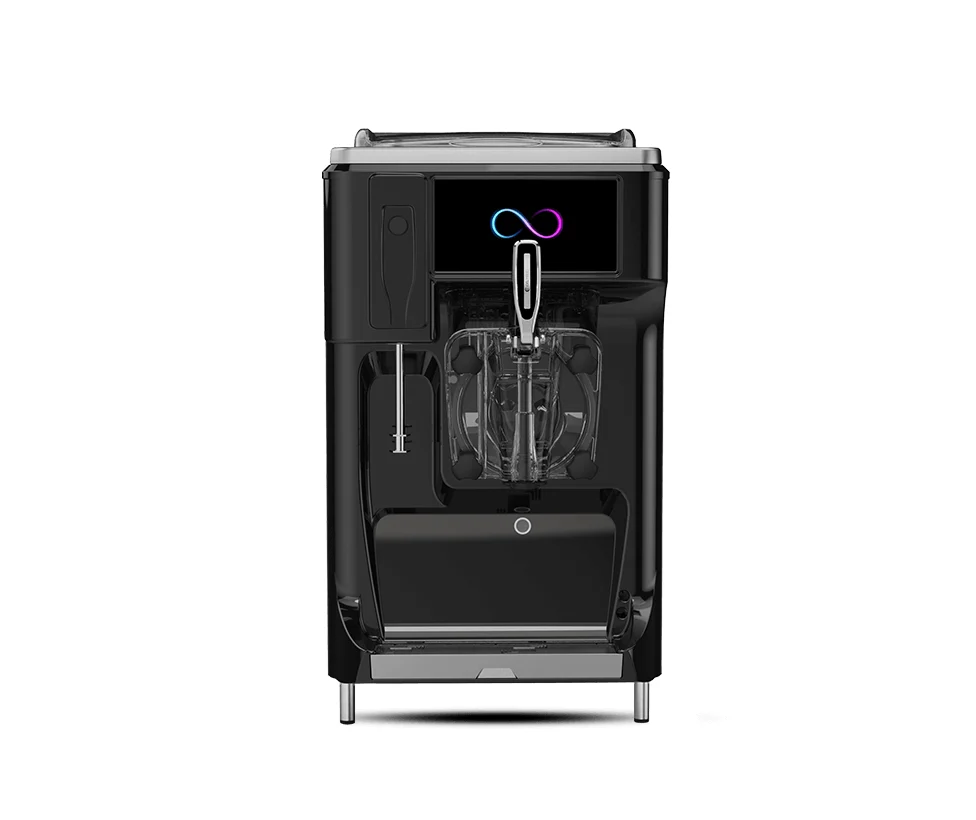

Giotto DR 14

The Gelmatic Giotto DR 14 is a countertop frozen beverage machine for frozen cocktails and milkshakes. Its 15 L hopper and 5.8 L freezing cylinder deliver up to 66 L per hour (GR) or 65 L per hour (PM), and the integrated mixer lets you blend garnishes straight into each drink.

At 430 mm wide it fits neatly on a bar or counter, with bottom-to-top airflow, a 7-inch INCODIS 3.0 touchscreen, Heat Treatment and GCare Connect remote connectivity. Choose gravity-fed (GR) or piston pump-fed (PM); finished in black.

Key specifications

• Products: Frozen beverages – frozen cocktails and milkshakes
• Flavours: 1
• Feed system: Gravity-fed (GR) or piston pump-fed (PM)
• Hourly production: Up to 66 L/h (GR) / 65 L/h (PM)
• Servings per minute: 7 x 400 ml, recovery time 150 seconds (GR) / 5 x 350 ml, recovery time 60 seconds (PM)
• Single dispensing quantity: 3400 ml, recovery time 210 seconds
• Hopper: 15 L, refrigerated, with level sensor
• Cylinder: 5.8 L
• Dimensions (H x W x D): 780 x 430 x 764 mm
• Weight: 100–106 kg (GR) / 110 kg (PM)
• Power supply: 2500 W (GR) / 2300 W (PM), single phase, 220–240 V, 50 Hz
• Cooling: Air-cooled, 1 compressor
• Refrigerant: R454C
• Control system: INCODIS 3.0, 7-inch touchscreen
• Colour: Black

↑ Back to top

Gelmatic technology in the Giotto DR 14

Control, consistency and performance (1)

• Level sensor: warns when the mix is running low, showing the portions remaining.

Programs and recipes (1)

• Self-closing handle and self-service mode: lets customers serve themselves safely while the screen shows your images and videos.

Hygiene, cleaning and food safety (1)

• Heat Treatment: reduces cleaning frequency while maintaining microbiological safety.

Build, design and convenience (6)

• INCODIS 3.0: a 7-inch touchscreen with built-in video tutorials that guide staff through every procedure.
• Integrated mixer: makes mixing each frozen drink with the garnish you want simple and practical.
• GCare Connect: remote connectivity lets you read machine data and operate it from a distance.
• Full front management: air flows from the bottom up, so no ventilation space is needed around the machine.
• Silent operation: designed to sit comfortably on a front-of-house bar or counter.
• Portion counter: keeps count of every drink dispensed.

↑ Back to top

Gelmatic technology up close

How the Gelmatic Giotto DR 14 works, in images from Gelmatic in Italy.

GTECH INCODIS 3.0

Gelmatic's most advanced control system: a 7-inch touchscreen with intuitive icons and a choice of language. It anticipates problems, tells staff the right action to take, and includes a multimedia library of user tutorials.

Heat Treatment (GTECH HT)

The Heat Treatment cycle raises the mix to 65 °C, holds it for 30 minutes, then brings it back down to 4 °C. You clean less often while the product stays microbiologically safe.

Bottom-to-top airflow

Air enters at the bottom and leaves at the top, so no ventilation space is needed around the machine and it can sit flush beside other equipment.

Compact and easy to position

Designed to fit into almost any location, with the refrigerated hopper and every daily task managed from the front.

GCARE Connect

Remote access to the machine from a smartphone, tablet or computer. Technicians can check how it is running as though they were standing in front of it, for faster troubleshooting.

Gravity-fed (GR)

A metering valve lets mix and air flow into the freezing cylinder by gravity: simple and immediate, works with any mix, even one with small fruit pieces, and has only a few parts to clean.

Or piston pump-fed (PM)

The PM version uses a piston pump to raise productivity and allow higher overrun, especially with milk-based flavours.

Who is the Giotto DR 14 for?

The Giotto DR 14 is for venues that want to add frozen cocktails and milkshakes to the menu from a compact countertop machine.

• Cocktail bars and pubs
• Cafés and milk bars
• Hotels, clubs and function venues
• Quick-service restaurants
• Cinemas and entertainment venues

↑ Back to top

See the Gelmatic Giotto DR 14 in action

Giotto DR 14: versatile frozen beverage machine (Gelmatic)

Giotto DR14 frozen beverages in action (Gelmatic)

↑ Back to top

What to serve from your Gelmatic Giotto DR 14

Gourmet shakes and thickshakes, made your way. Shake premix is in stock for immediate delivery, and our chefs can develop a custom base recipe for your brand. Majors Group also supplies the gourmet shake flavours, toppings and drink cups, plus training.

Shake premix: in stock now

Ready-to-use shake and soft serve base, available for immediate delivery Australia-wide.

• Pan White Vanilla
• Chocolate
• Custard

All shake & soft serve mixes →

Gourmet shake flavours

34 ready-to-use flavours for milkshakes and thickshakes.

• Chocolate Flavour
• Strawberry Flavour
• Butterscotch Flavour

All shake flavours →

Custom base recipe

Our in-house chefs develop a shake base to your spec: sweetness, creaminess, dairy or plant-based. Backed by Rubicone and Carpigiani.

Talk to our chefs →

Toppings & sauces

Sauces and crunchy crocks to finish gourmet shakes.

• Chocolate sauce
• Strawberry sauce
• Pistachio Crock

All toppings →

Drink cups

Shake and drink cups from 8oz to 24oz, custom-printed with your brand on request.

• 8oz White Drink Cup
• 12oz White Drink Cup
• 16oz White Drink Cup

All drink cups →

Training

Hands-on training for your team: shake production, cleaning and machine care.

• INTENSIVE SOFT-SERVE COURSE

Gelato University →

Why buy your Gelmatic Giotto DR 14 from Majors Group?

• Free demonstration: see the Giotto DR 14 in action at any Majors Group showroom before you buy
• Set-up and menu development: machine set-up, soft serve recipe and menu development for your venue
• One-on-one Gelmatic training: hands-on training so your team can run, clean and serve with confidence
• Since 1993: Majors Group has been supplying Australian food businesses since 1993
• Equipment finance available: ask our team about finance options for your new machine

Call 1800 625 677 or send us an enquiry for a quote on the Gelmatic Giotto DR 14.
