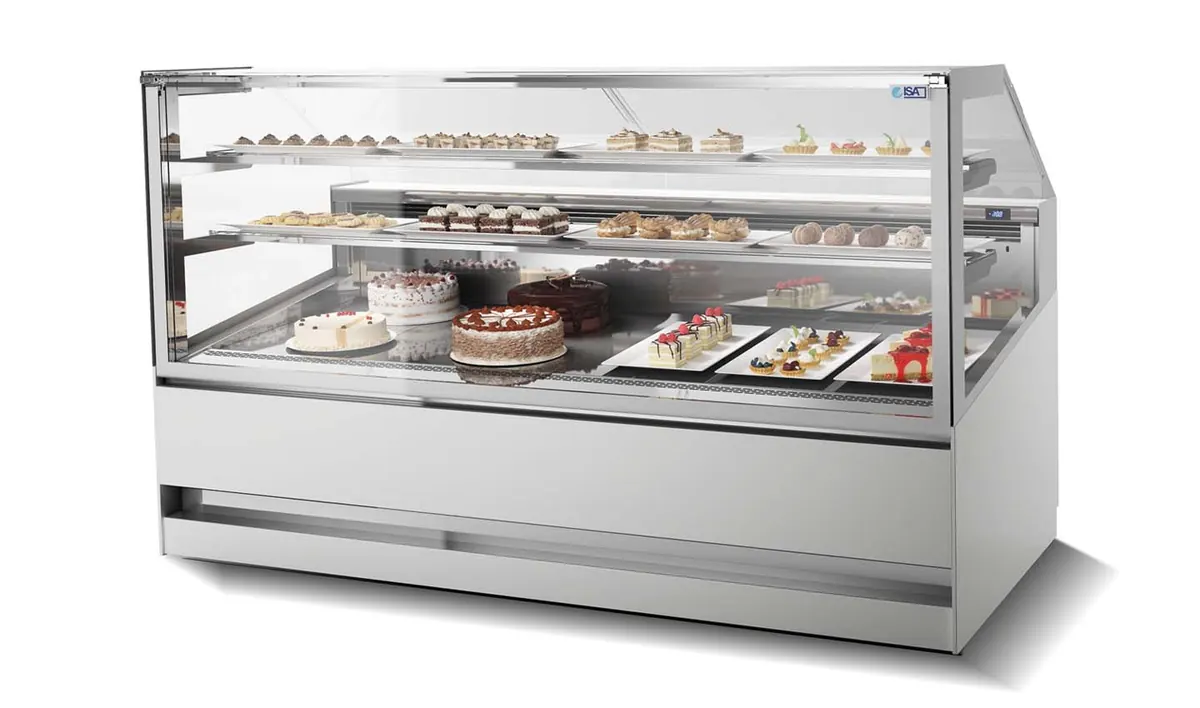

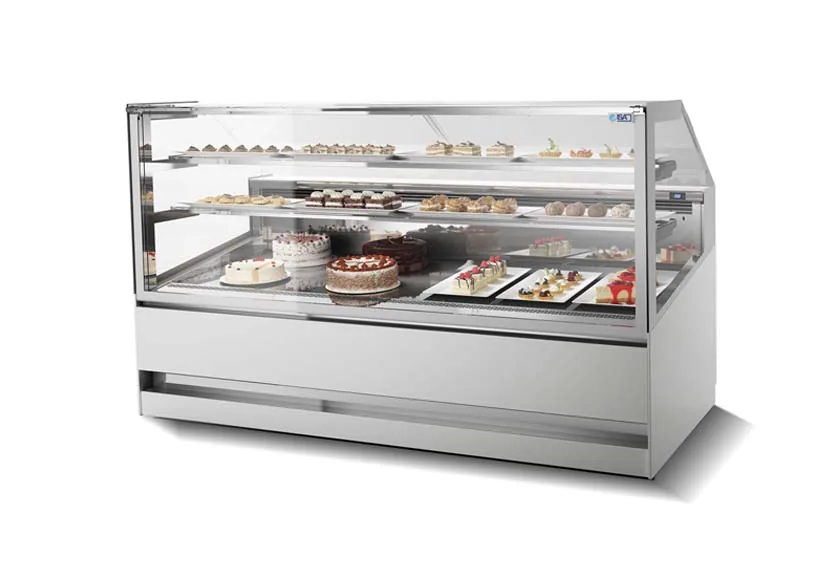

3D Show Pastry Display Cabinet
A spectacular view from every angle.
About the 3D Show Pastry
3D Show Pastry is the pastry version of ISA’s 3D Show, a three-dimensional format that shows the product from the front and both sides through fully transparent glass.
Narrow steel side supports keep the view open, and top-to-bottom LED lighting makes the product appear to float inside the case.
What makes the 3D Show Pastry different
Gelato that appears to float
Narrow steel side supports, transparent tubs and top-to-bottom LED lighting put the gelato on show from the front and both sides. The holders for the clear tubs make the product appear to float inside the case.
On-board or remote unit, double ventilation
A high-performance on-board or remote condensing unit with double ventilation holds a steady, uniform temperature through the whole case, which keeps energy use and running cost down.
Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in Australia; ask us which sizes are available and the lead time for the rest.
| Version | Refrigerant | Height (cm) | Length (cm) |
|---|---|---|---|
| 3D Show Pastry | R452A | 117 | 170 |
| 3D Show Pastry | R452A | 117 | 220 |
| 3D Show Pastry | R452A | 135 | 120 |
| 3D Show Pastry | R452A | 135 | 170 |
| 3D Show Pastry | R452A | 135 | 220 |
3D Show Pastry technical data
ISA publishes the full technical data and options for this model. Ask us for the details that apply to your layout, power supply and delivery.
3D Show Pastry questions
Is the 3D Show Pastry on-board or remote?
ISA offers the 3D Show with a high-performance on-board or remote condensing unit.
How is the product lit?
Top-to-bottom LED lighting, so the product appears to float inside the transparent case.
Specifications
| Cabinet type | |
|---|---|
| Brand | |
| Installation | Plug-in, Remote (optional) |
| Lighting | LED 5700 K |
| Glass | Heated stratified |
| Side panels | Side panels inbright stainless steel |
| Handling | Swivel castors with brake, Height-adjustable feet |
| Rear closure | Polycarbonate sliding doors |
| Configuration | Canalised (optional) |
| Heights (cm) | 117, 135 |
| Lengths (cm) | 120, 170, 220 |
| Depth (cm) | 110 |
