Carpigiani Pastomaster XPL P

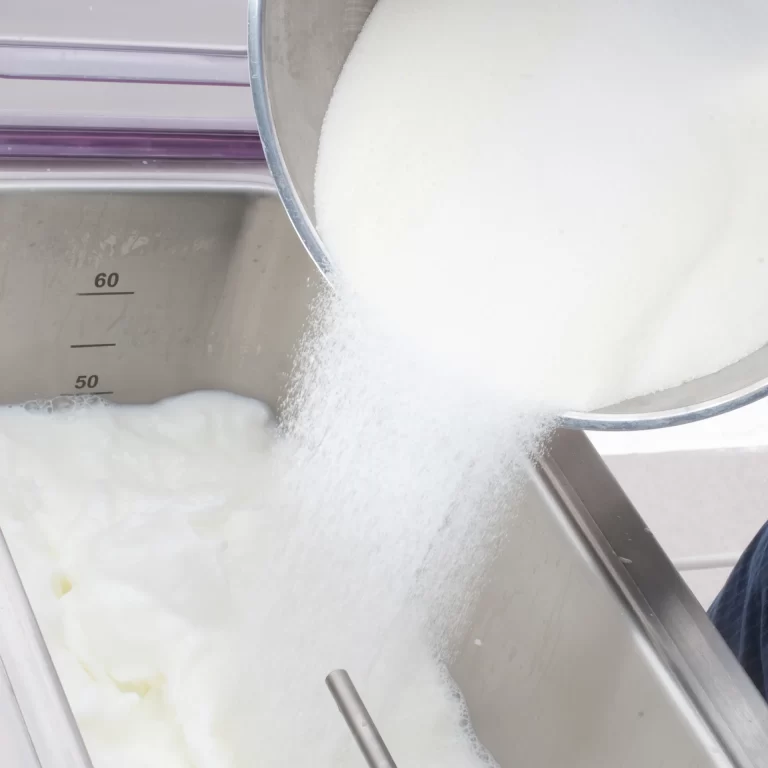

Pasteurisers for gelato mix in two sizes: up to 60 or 120 litres per cycle. The patented exchange pump mixes and pasteurises in one cup, and the dry bain-marie lets you work with small batches without burning the mix.
Carpigiani Pastomaster XPL P models
Every model has its own page with full features, specifications and photos. Select a model to see it in detail.
Each Pastomaster XPL P model
Pastomaster 60 XPL P
Pasteuriser that allows pasteurising up to 60 L of mix per production cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Production per Cycle: 15–60 L
Rated Power Input: 7 kW
Fuse Size: 16 A
Pastomaster 120 XPL P
Pasteuriser that allows pasteurising up to 120 L of mix per production cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Production per Cycle: 30–120 L
Rated Power Input: 11.2 kW
Fuse Size: 20 A
Pastomaster XPL P specifications
| Specification | Pastomaster 60 XPL P | Pastomaster 120 XPL P |
|---|---|---|
| Power Supply | 400v / 50hz / 3Ph | 400v / 50hz / 3Ph |
| Cooling System | Water Cooling | Water Cooling |
| Production per Cycle | 15–60 L | 30–120 L |
| Rated Power Input | 7 kW | 11.2 kW |
| Fuse Size | 16 A | 20 A |
| Dimensions (W x D x H) | 35 x 86 x 103 cm | 65 x 86 x 103 cm |
| Net Weight | 162 kg | 269 kg |
Specifications are listed on each model’s page. Ask our team to confirm the right model for your site.
