Carpigiani Labo XPL P
Batch freezers in six sizes, from a countertop model making 1.5 to 2.5 kg per cycle to a floor-standing model making 6 to 13 kg per cycle.
Carpigiani Labo XPL P models
Every model has its own page with full features, specifications and photos. Select a model to see it in detail.
Each Labo XPL P model

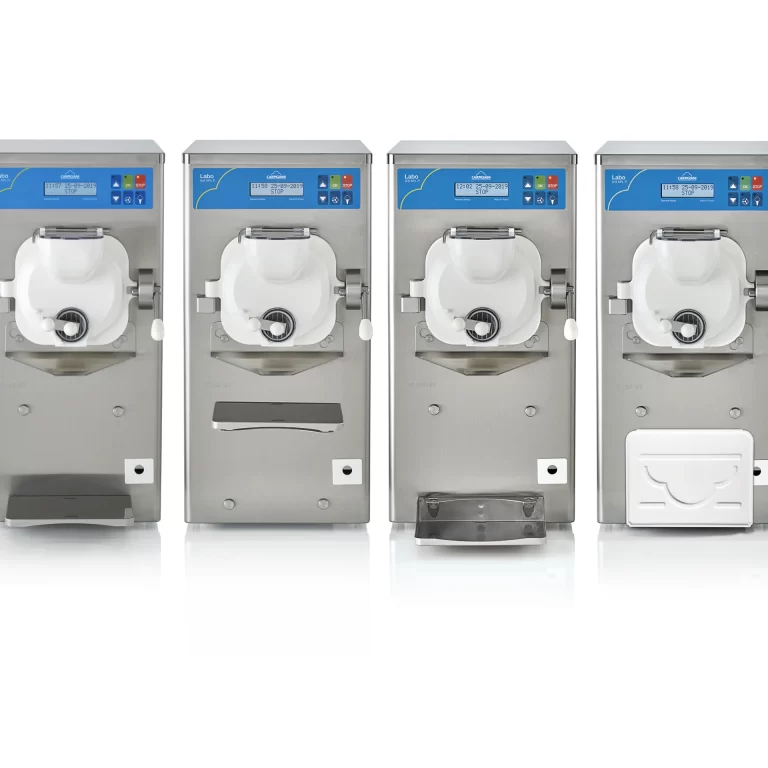

Labo 8-12 XPL P
The batch freezer manages a range of quantities from a minimum of 1.5 kg to a maximum of 2.5 kg per cycle.
Power Supply: 240v / 50hz / 1Ph
Cooling System: Air Cooling
Hourly Production: min 8 kg, max 12 kg
Quantity per Cycle: 1.5–2.5 kg
Rated Power Input: 2.2 kW

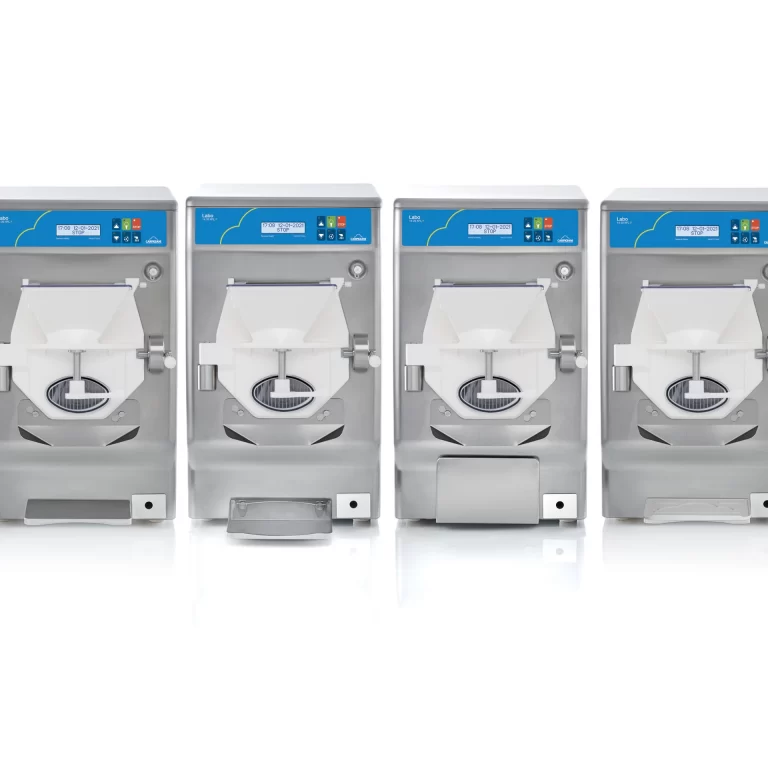

Labo 14 20 XPL P
The batch freezer manages a range of quantities from a minimum of 2 kg to a maximum of 4 kg per cycle.
Power Supply: 240v / 50hz / 1Ph
Cooling System: Air Cooling
Hourly Production: min. 14 kg; max. 20 kg
Quantity per Batch: 2–4 kg
Dimensions (W x D x H): 45.5 x 58 x 76.5 cm
Labo 20 30 XPL P
The batch freezer manages a range of quantities from a minimum of 3 kg to a maximum of 5 kg per cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Hourly Production: 20/30 kg; 28/40 L
Mix per Cycle: 3–5 kg
Programs (quantity per cycle): Cremolata 5 kg; Crystal 3–5 kg
Labo 30 45 XPL P
The batch freezer manages a range of quantities from a minimum of 3.5 kg to a maximum of 7.5 kg per cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Hourly Production: 30/45 kg; 42/60 L
Mix per Cycle: 3.5–7.5 kg
Programs (quantity per cycle): Cremolata 7.5 kg; Crystal 3.5–7.5 kg
Labo 40 60 XPL P
The batch freezer manages a range of quantities from a minimum of 5 kg to a maximum of 10,5 kg per cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Hourly Production: 40/60 kg; 56/84 L
Mix per Cycle: 5–10.5 kg
Programs (quantity per cycle): Cremolata 10.5 kg; Crystal 5–10.5 kg
Labo 50 90 XPL P
The batch freezer manages a range of quantities from a minimum of 6 kg to a maximum of 13 kg per cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Hourly Production: 50/90 kg; 70/126 L
Mix per Cycle: 6–13 kg
Programs (quantity per cycle): Cremolata 13 kg; Crystal 6–13 kg
Labo XPL P specifications
| Model | Power Supply | Cooling System | Hourly Production | Rated Power Input | Fuse Size | Dimensions (W x D x H) | Net Weight |
|---|---|---|---|---|---|---|---|
| Labo 8-12 XPL P | 240v / 50hz / 1Ph | Air Cooling | min 8 kg, max 12 kg | 2.2 kW | 12 A | 36 x 55 x 74 cm | 90 kg |
| Labo 14 20 XPL P | 240v / 50hz / 1Ph | Air Cooling | min. 14 kg; max. 20 kg | – | – | 45.5 x 58 x 76.5 cm | 150 kg |
| Labo 20 30 XPL P | 400v / 50hz / 3Ph | Water Cooling | 20/30 kg; 28/40 L | 4 kW | 12 A (EU Version) | 52 x 65 x 140 cm | 230 kg |
| Labo 30 45 XPL P | 400v / 50hz / 3Ph | Water Cooling | 30/45 kg; 42/60 L | 5.2 (EU Version) kW | 16 A (EU Version) | 52 x 65 x 140 cm | 270 kg |
| Labo 40 60 XPL P | 400v / 50hz / 3Ph | Water Cooling | 40/60 kg; 56/84 L | 6 (EU Version) kW | 16 A (EU Version) | 52 x 65 x 140 cm | 320 kg |
| Labo 50 90 XPL P | 400v / 50hz / 3Ph | Water Cooling | 50/90 kg; 70/126 L | 7 (EU Version) kW | 20 A (EU Version) | 52 x 65 x 140 cm | 330 kg |
Specifications are listed on each model’s page. Ask our team to confirm the right model for your site.
