ISA Mistral

Get a Quote

Ideal for frozen and chill products.

ENERGY SAVING: Neon + EC Fan motor / DEFROST: Hot Air (RV TB) / CLIMATIC CLASS 4

Description

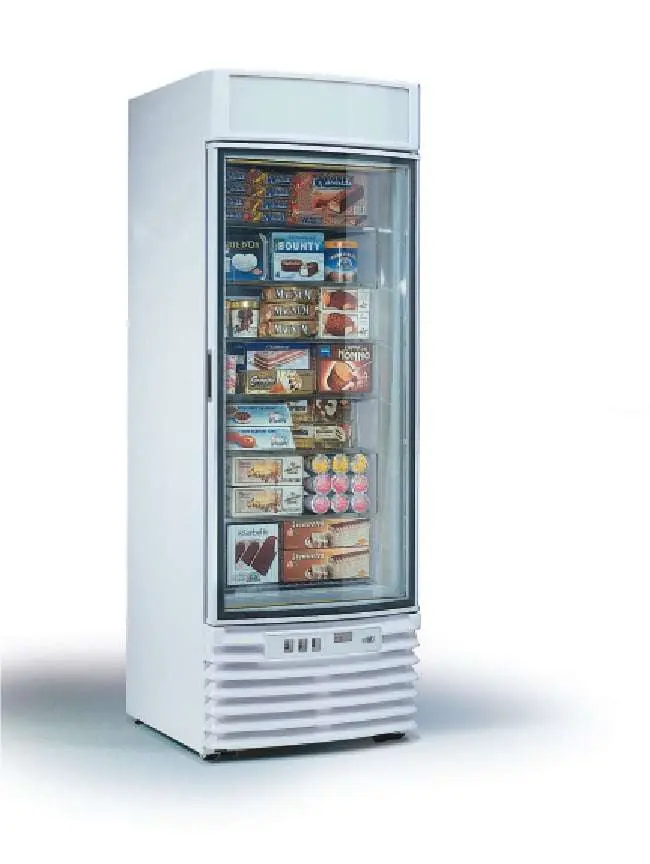

Upright display cabinet with ventilated refrigeration (RV) with curved tempered glass door and side handle. Available in double temperature (TN-TB) with temperature control set at -18 /+5°C. One piece structure with polyurethane ecological insulation (HCFC & HFC free) foamed with C02 – 60 mm thick. Internal and external base in white plastified sheet with rounded side panels. Door with automatic closure and spring. Decompression valve for frequent openings. Control board with electronic board. Two kinds of defrosting: stop compressor defrosting in TN version; hot gas defrosting in TB and TB/TN version. Drip try with automatic evaporation system. The ventilated versions (RV) are fitted with adjustable side supports for grids. A rear iIIuminated lighting canopy is positioned above the door.

Additional information

Model

50 RV TB/TN

Capacity (gross/net)

TB/TN 530 / 335 lt

Net weight

151 kg

Refrigeration

Ventilated

Refrigerant

R404A

Climatic class

4

Operating conditions

30 °C / 55 %RH

Product temperature

-18/ -16 °C / -1/ +5 °C

Defrost

Off cycle

Power Supply

230 V / 1 Ph / 50 Hz
