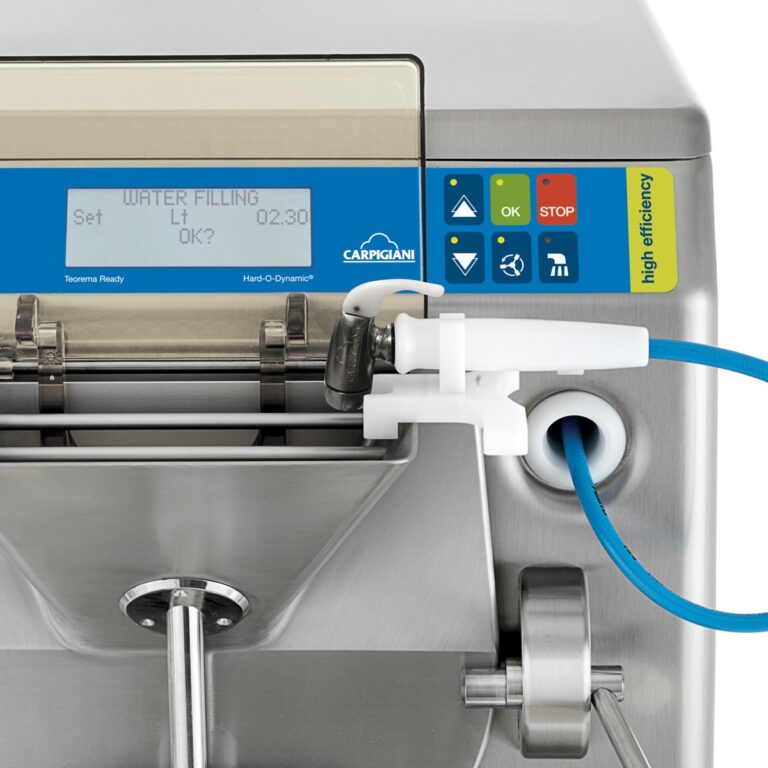

Carpigiani Labotronic HE-H
High-efficiency batch freezers in four sizes, from 1.5 to 7.5 kg per batch up to 4.5 to 17 kg per batch.
Carpigiani Labotronic HE-H models
Every model has its own page with full features, specifications and photos. Select a model to see it in detail.
Each Labotronic HE-H size
Labotronic HE-H 10/45
Quantity per Batch: 1.5–7.5 kg
Mix Added: Hourly amount: 10–45 kg
Gelato Produced: Hourly amount: 12–63 L
Programs (quantity per cycle): Cremolata 3.5–7.5 kg; Crystal 3.5–7.5 kg; Granita 3.5–7.5 kg; Zero+ 1.5–6.5 kg
Rated Power Input: 6.4 kW
Fuse Size: 16 A
Labotronic HE-H 15/60
Quantity per Batch: 2.5–10.5 kg
Mix Added: Hourly amount: 15–60 kg
Gelato Produced: Per cycle: 3.5–15 L; Hourly amount: 21–84 L
Programs (quantity per cycle): Cremolata 5–10.5 kg; Crystal 5–10.5 kg; Slush 10.5 kg; Zero+ 2.5–9.5 kg
Rated Power Input: 7.6 kW
Fuse Size: 20 A

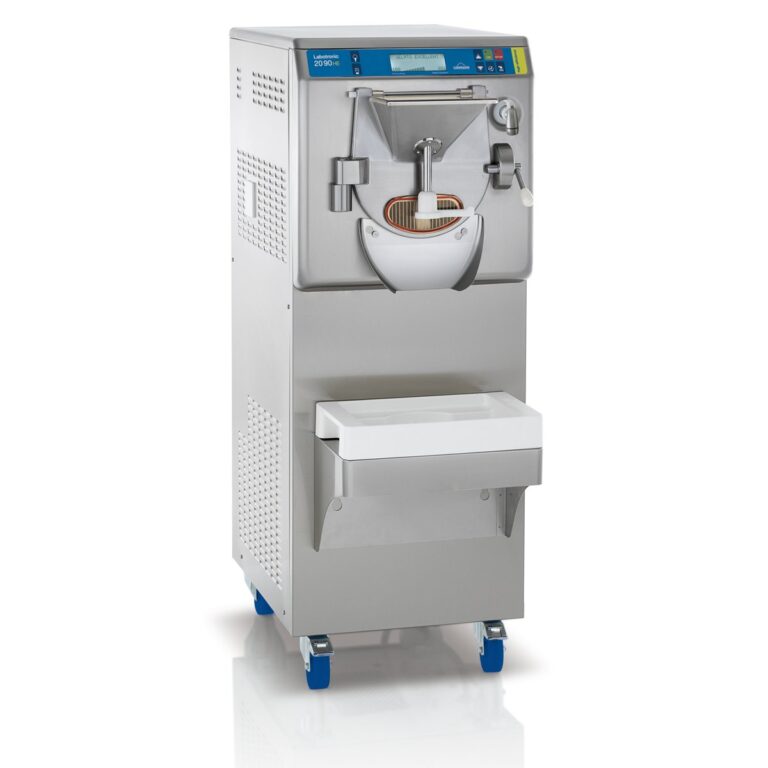

Labotronic HE-H 20/90
Quantity per Batch: 3.5–13 kg
Mix Added: Hourly amount: 20–90 kg
Gelato Produced: Per cycle: 5–19 L; Hourly amount: 28–135 L
Programs (quantity per cycle): Cremolata 6–13 kg; Crystal 6–13 kg; Slush 6–13 kg; Zero+ 3.5–12 kg
Rated Power Input: 9 kW
Fuse Size: 25 A
Labotronic HE-H 25/110
Quantity per Batch: 4.5–17 kg
Mix Added: Hourly amount: 25–110 kg
Gelato Produced: Per cycle: 6.5–24 L; Hourly amount: 35–152 L
Programs (quantity per cycle): Cremolata 7–17 kg; Crystal 7–17 kg; Slush 7–17 kg; Zero+ 4.5–16 kg
Rated Power Input: 11 kW
Fuse Size: 32 A
Labotronic HE-H sizes compared
Labotronic HE-H: 4 sizes
| Specification | Labotronic HE-H 10/45 | Labotronic HE-H 15/60 | Labotronic HE-H 20/90 | Labotronic HE-H 25/110 |
|---|---|---|---|---|
| Quantity per Batch | 1.5–7.5 kg | 2.5–10.5 kg | 3.5–13 kg | 4.5–17 kg |
| Mix Added | Hourly amount: 10–45 kg | Hourly amount: 15–60 kg | Hourly amount: 20–90 kg | Hourly amount: 25–110 kg |
| Gelato Produced | Hourly amount: 12–63 L | Per cycle: 3.5–15 L; Hourly amount: 21–84 L | Per cycle: 5–19 L; Hourly amount: 28–135 L | Per cycle: 6.5–24 L; Hourly amount: 35–152 L |
| Programs (quantity per cycle) | Cremolata 3.5–7.5 kg; Crystal 3.5–7.5 kg; Granita 3.5–7.5 kg; Zero+ 1.5–6.5 kg | Cremolata 5–10.5 kg; Crystal 5–10.5 kg; Slush 10.5 kg; Zero+ 2.5–9.5 kg | Cremolata 6–13 kg; Crystal 6–13 kg; Slush 6–13 kg; Zero+ 3.5–12 kg | Cremolata 7–17 kg; Crystal 7–17 kg; Slush 7–17 kg; Zero+ 4.5–16 kg |
| Rated Power Input | 6.4 kW | 7.6 kW | 9 kW | 11 kW |
| Fuse Size | 16 A | 20 A | 25 A | 32 A |
| Fuse Size (with inverter) | 16 A | 20 A | 20 A | 25 A |
| Dimensions (W x D x H) | – | 52 x 65 x 140 cm | 52 x 65 x 140 cm | 52 x 85 x 140 cm |
| Net Weight | – | 320 kg | 345 kg | 420 kg |
