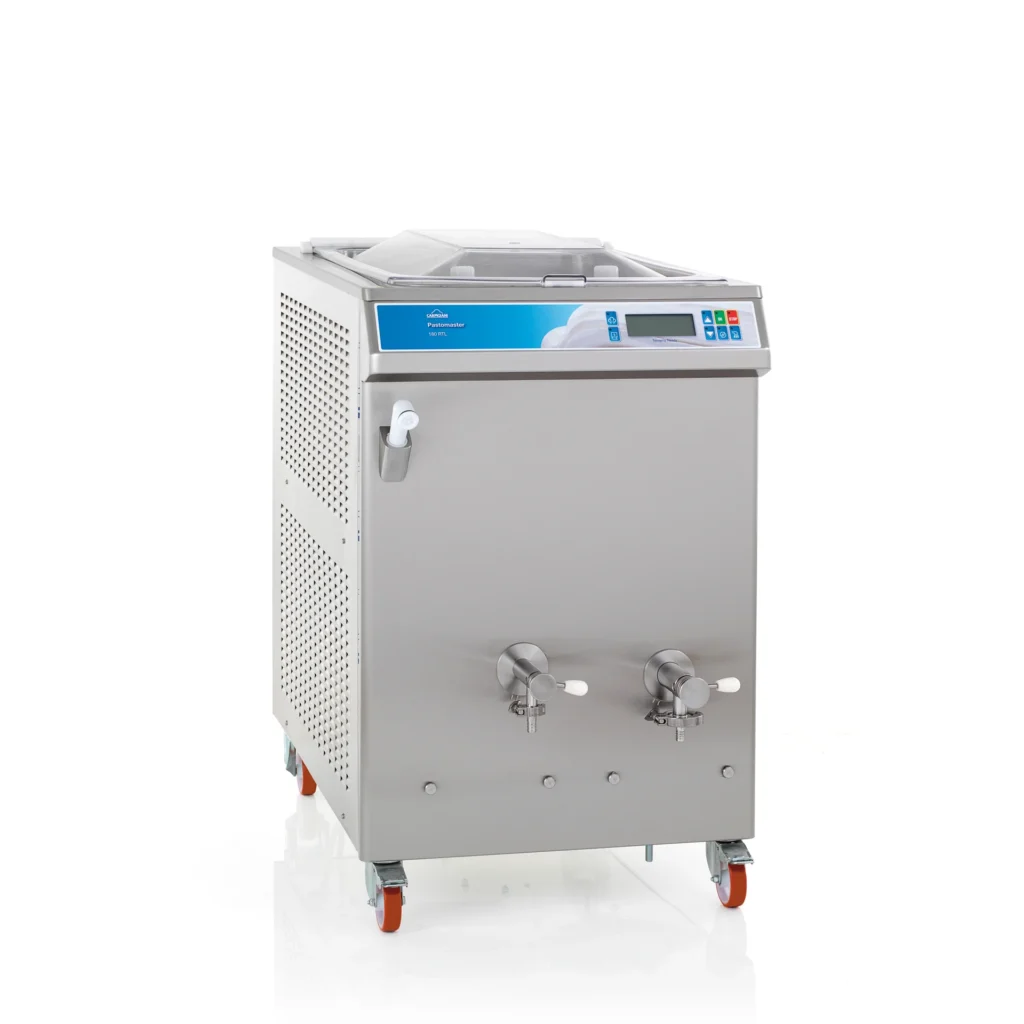

PASTOMASTER 180 RTL
Pasteurizer that allows pasteurizing up to 180 L of mix per production cycle
PASTOMASTER 180 RTL
Pasteurizer that allows pasteurizing up to 180 L of mix per production cycle
The Carpigiani pasteurizer is ideal for pasteurizing your excellent gelato mix.
The machine is equipped with an exchanger pump that ensures high micronization of fat globules to achieve creamy and stable gelato.
The hopper capacity allows the machine to handle a minimum of 30 L and a maximum of 180 L of mix per production cycle.
Performance and functions
- Partialization of production capacity from 30 to 180 kg
- Automatic Pasteurization cycle
- Tank capacity from 30 to 180 kg per cycle
- All components in contact with the mix are in stainless steel and polymers food approved
- Mixing from the bottom side that ensures full accessibility to the tank
- Tank cover in polymer
- N. 2 taps for mix output
| ank Capacity | |
|---|---|
| max. lt | 180 (Hourly production can vary with the mix used and operating conditions). |
| min. lt | 30 (Hourly production can vary with the mix used and operating conditions). |
| Electrical | |
| Condenser | Water |
| Hz | 50 |
| Ph | 3 |
| Volt | 400 |
| Fuse Size A | 28 |
| Rated Power Input kW | 17,5 |
| Dimensions | |
| Dimension at base Depth cm | 106 |
| Dimension at base Height cm | 119 |
| Dimension at base Width cm | 75 |
| Net Weight kg | 345 |
| Note | |
| Note | Data was collected at 25°C ambient temperature. The Pastomaster 180 RTL machines are made by Carpigiani according to a Certified Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary. |
